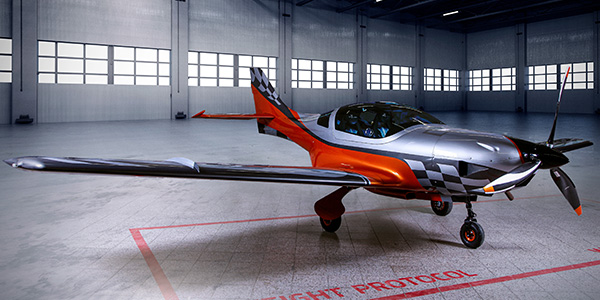

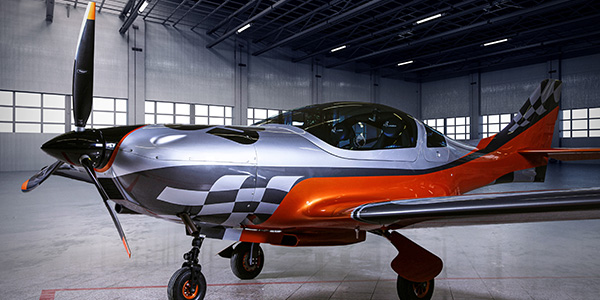

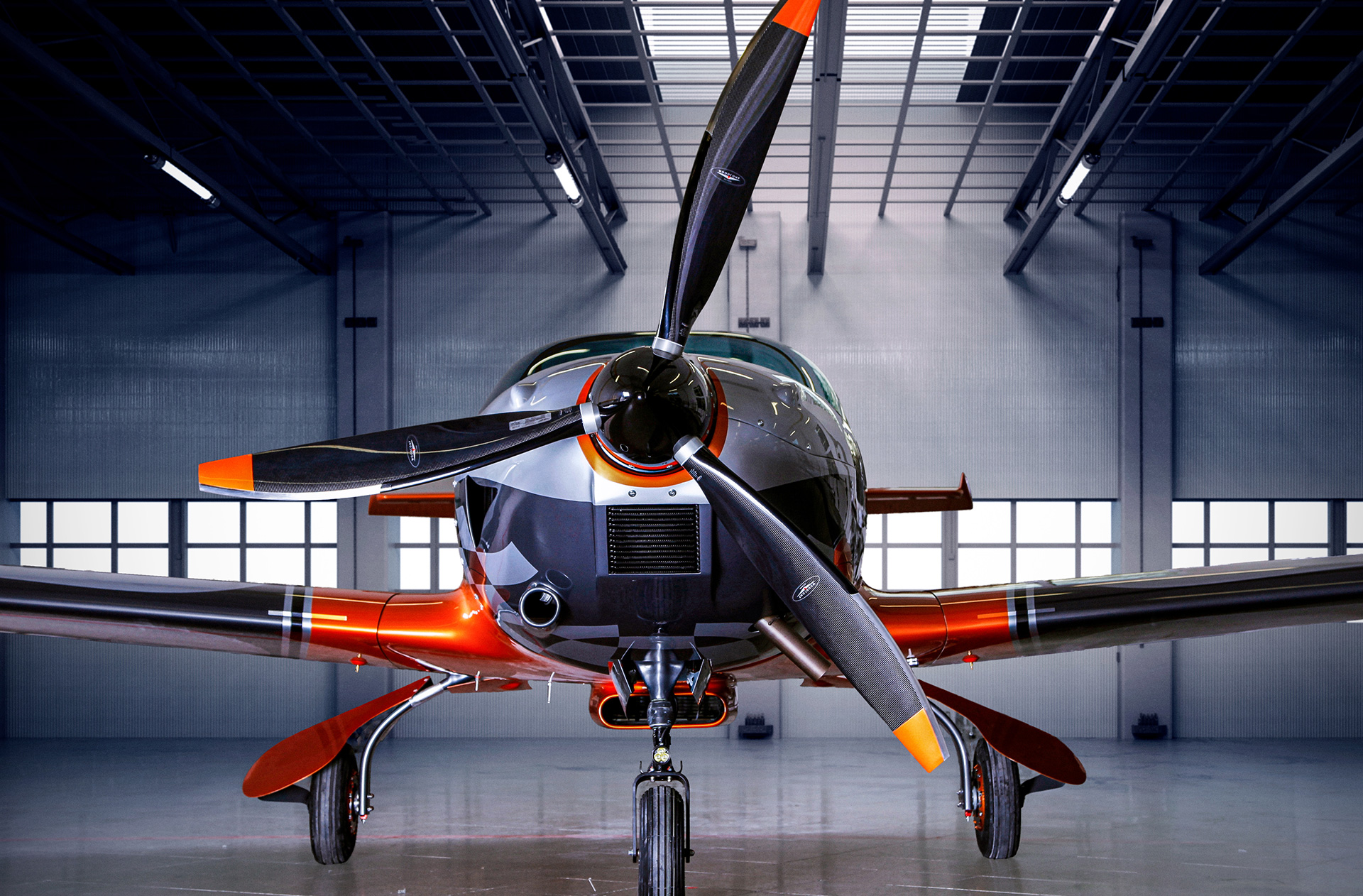

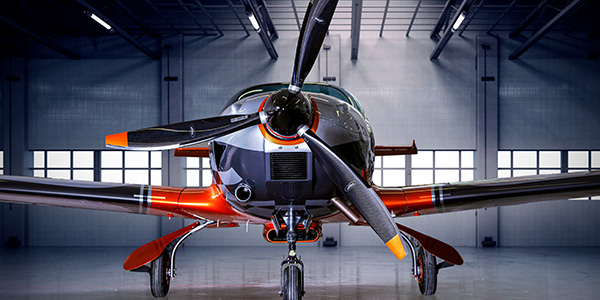

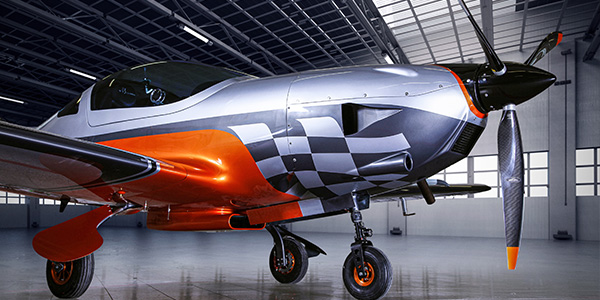

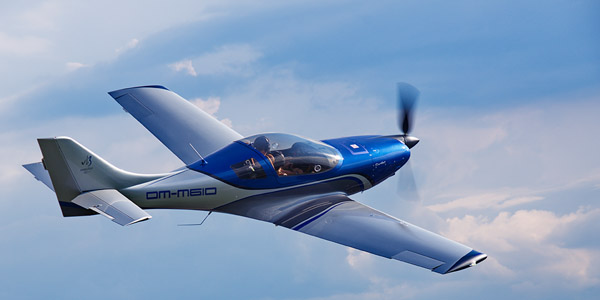

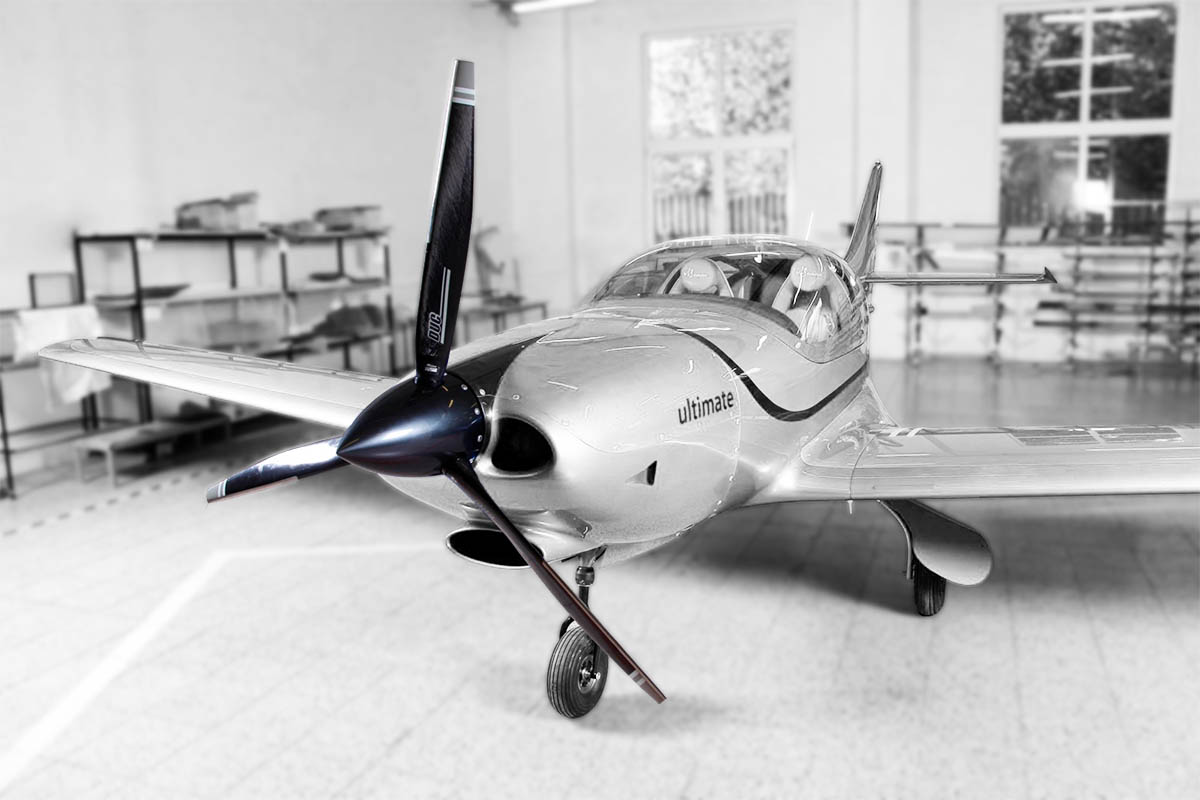

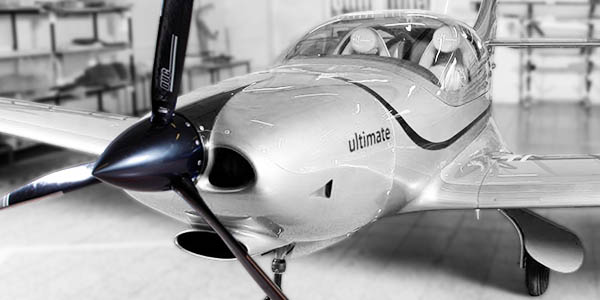

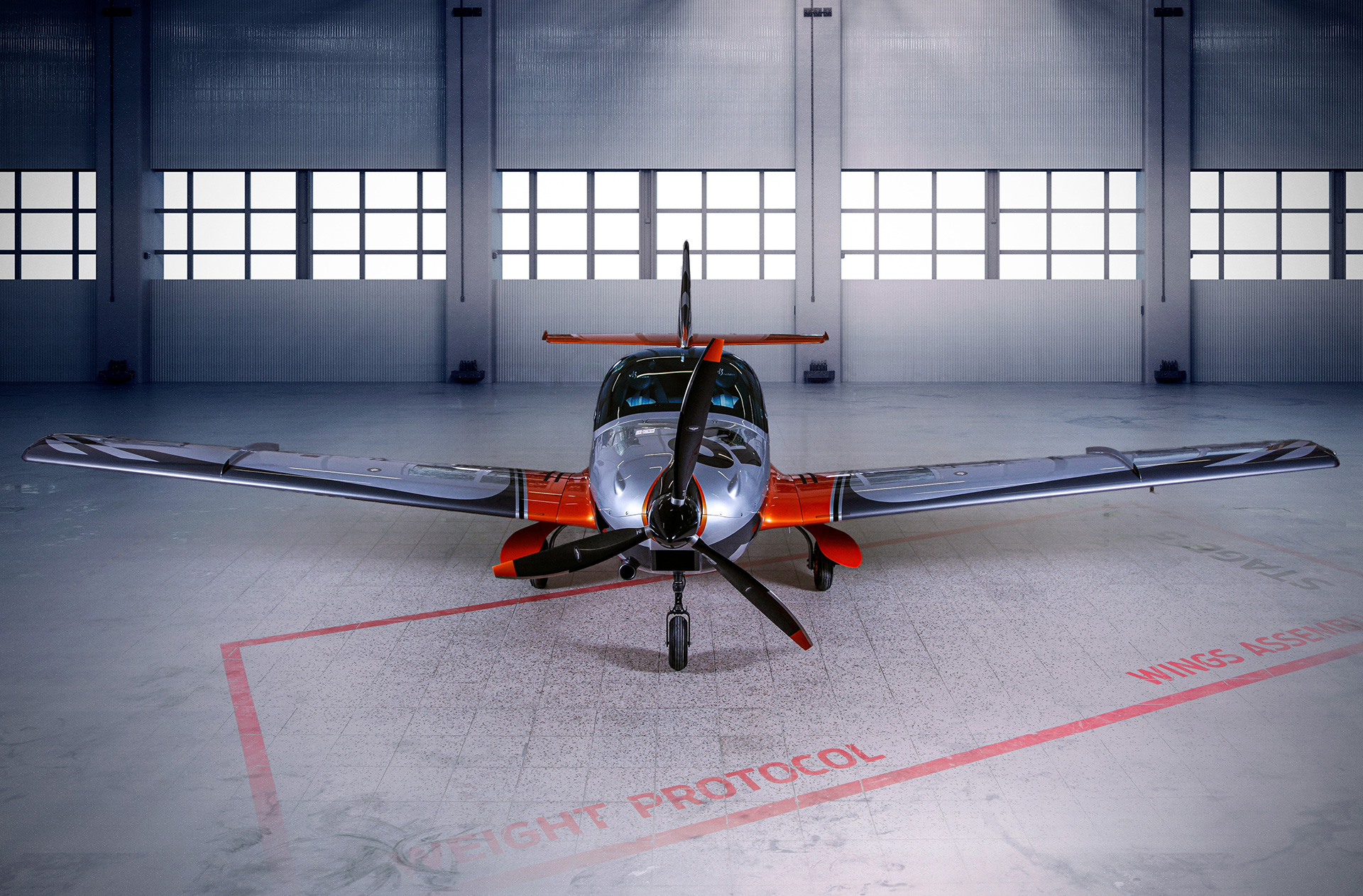

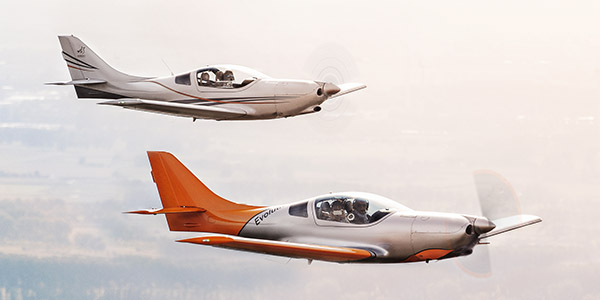

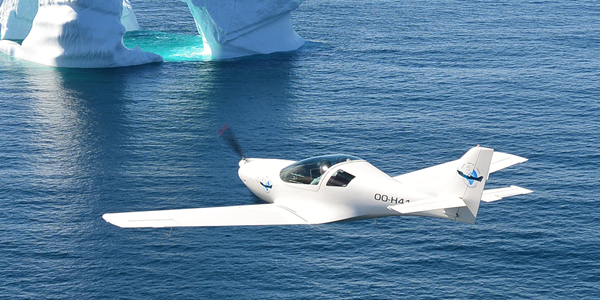

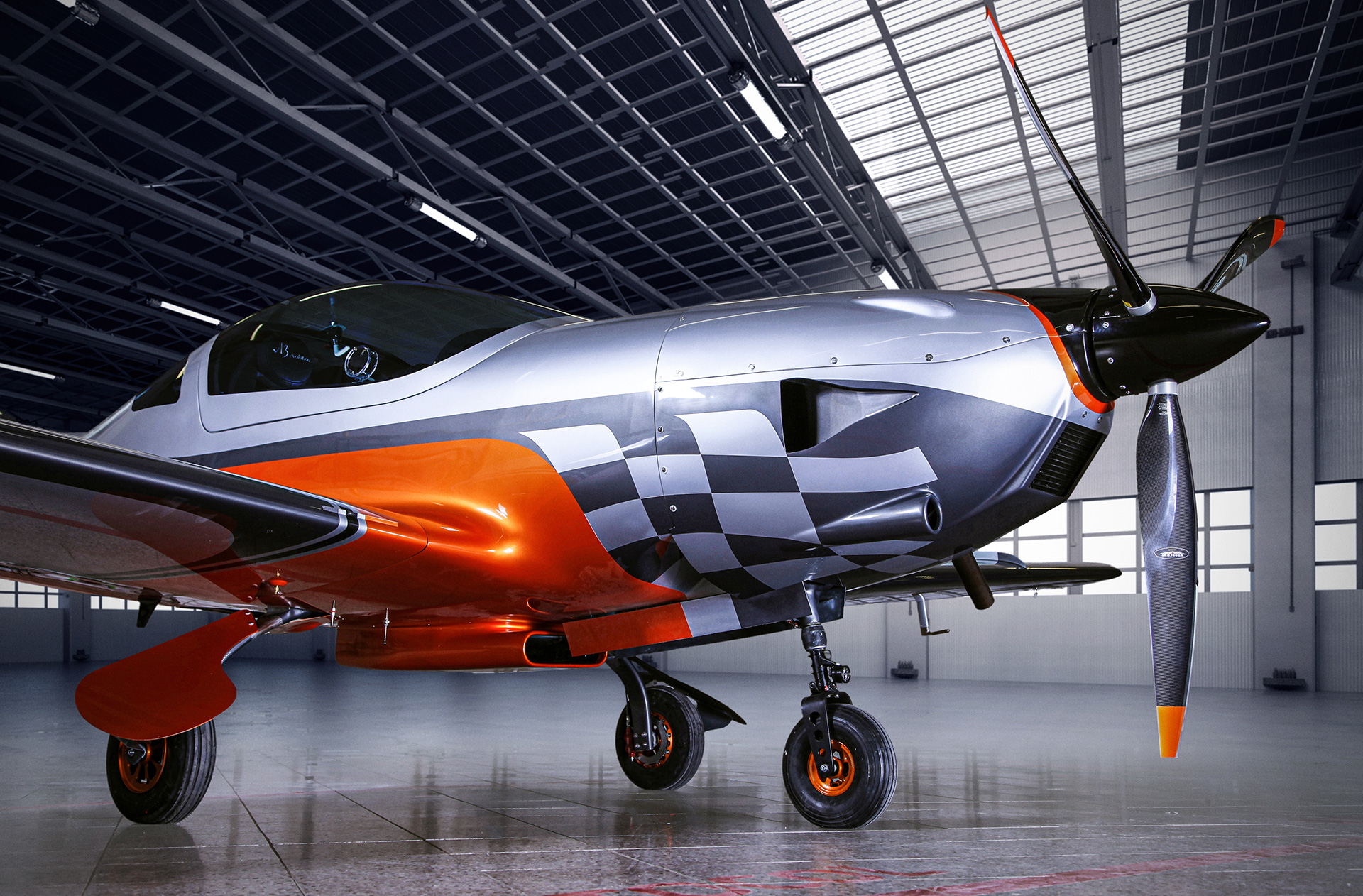

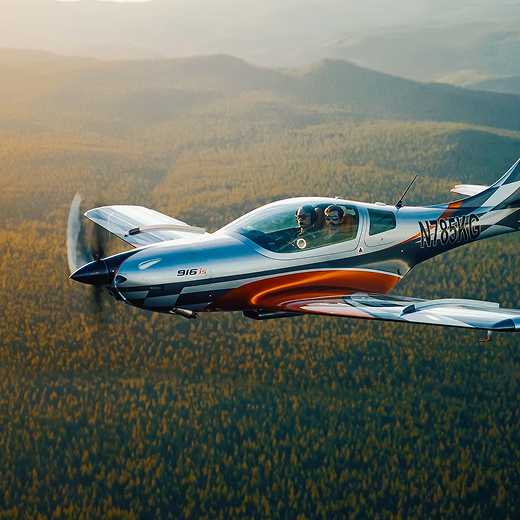

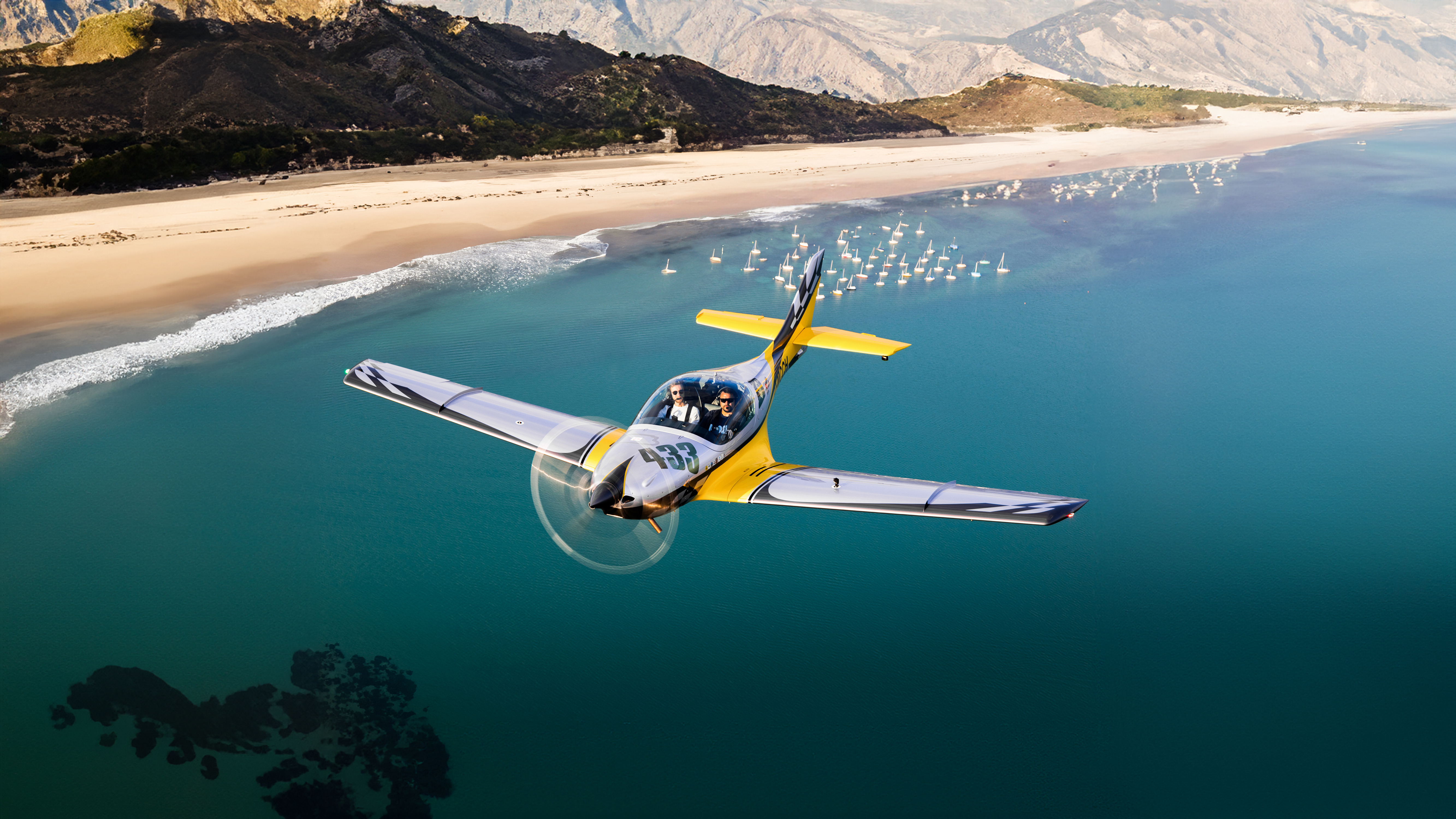

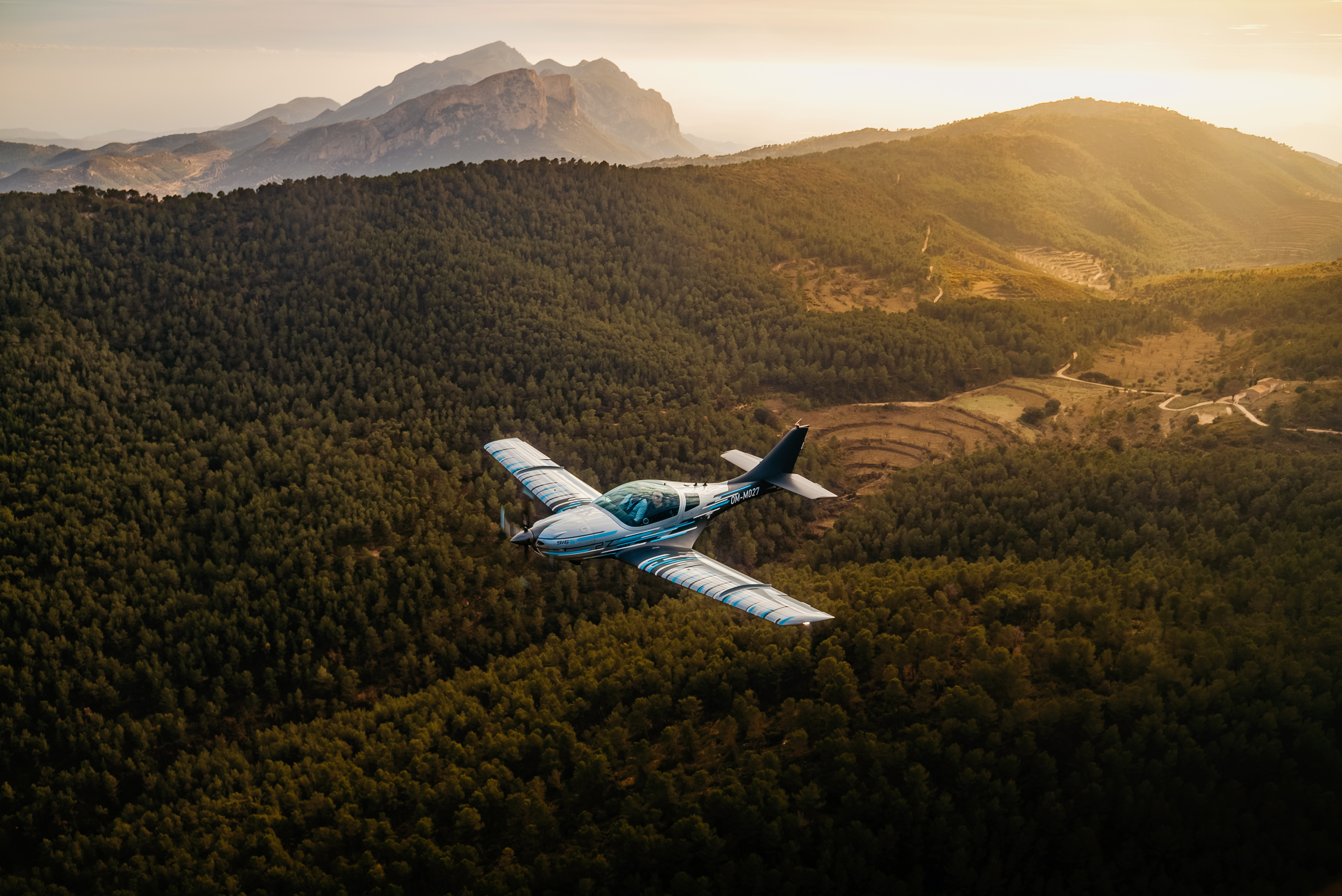

VL-3 Retractable Gear

For cross-country pilots.

PERFORMANCE
- Take off & Landing175 m
- Best rate of climb2000 ft/min
- Max cruise speed370 km/h TAS
- Stall speed78 km/h IAS
- Vne340 km/h IAS
ENGINE
- ManufacturerRotax
- Model915iS
- Horsepower160hp
DIMENSIONS
- Wingspan8,44 m
- Length6,24 m
- Height2,05 m
- Cabin Width115 cm
- Fuel tanks140 l
WEIGHT
- Empty weight360 kg
- Useful load235 kg
- MTOW 600 kg

ALL ROTAX FLAVORS AVAILABLE

ROTAX 912 / 100hp

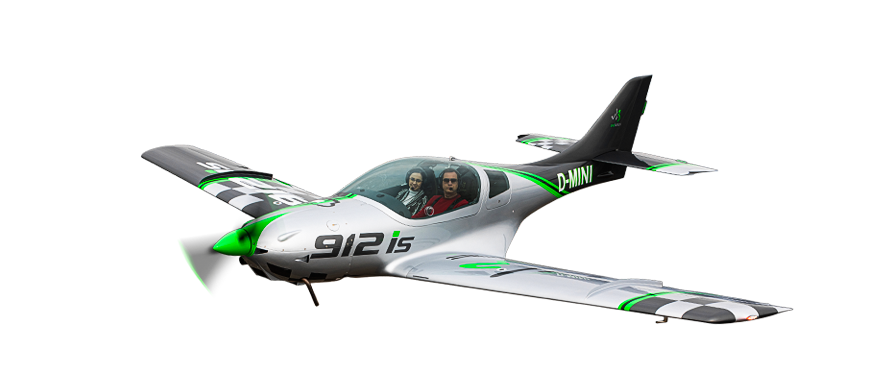

ROTAX 912iS / 100hp

Taste The Speed

ROTAX 915iS / 142hp

For Speed Freaks

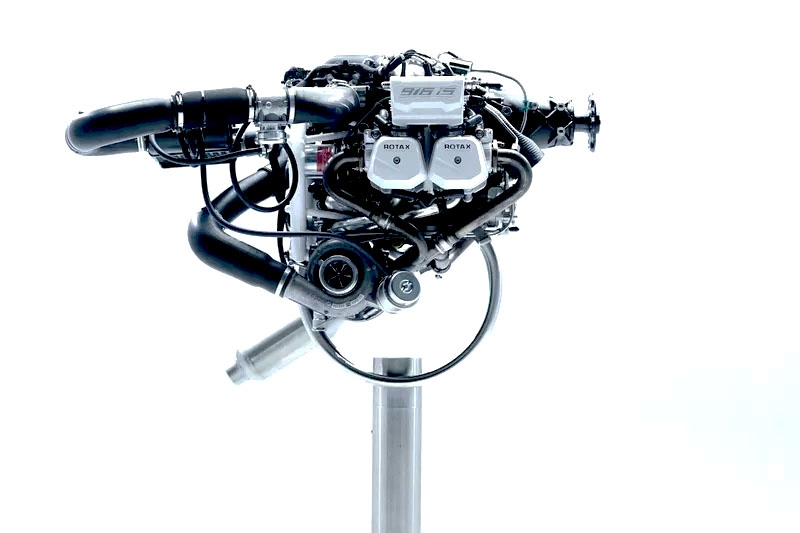

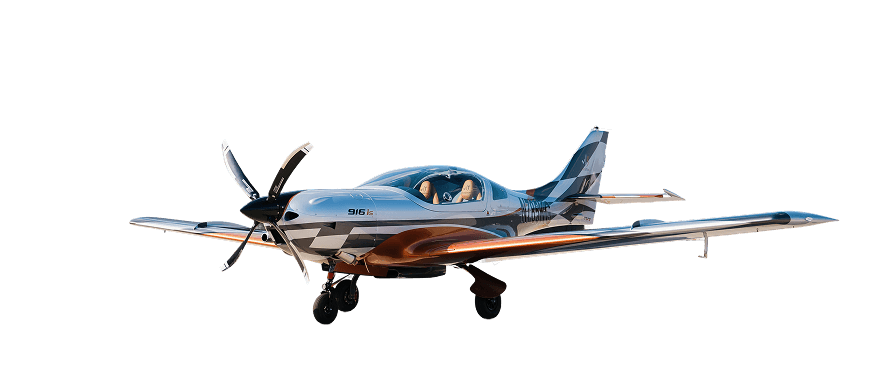

ROTAX 916iS / 160hp

New generation of power

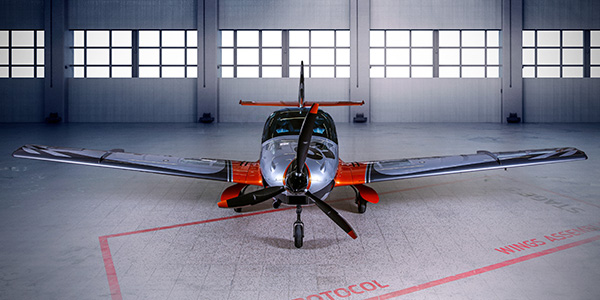

TAILORED DESIGN

The airframe is completely made of composite material which excels in its specific strength and excellent fatigue properties. The entire aircraft can be broken down into individual units, i. e., both halves of the wing and tail surfaces, including stabilizers, can be separated from the fuselage to ease aircraft transport.

The aerodynamic design of the wing gives the aircraft appropriate fall characteristics. The separation of air flow in the critical angle of slope happens at the root of the wing. This ensures good handling of the machine until it drops and symmetrically stalls. This allows for the aircraft’s smooth and agile handling.

The tail section employs a true and tested traditional design. The internal structure of the stabilizers is similar to the construction of the wings. Therefore the tail section can be completely removed from the hull, with the exception of the keel, which is its integral part.

A refined interior

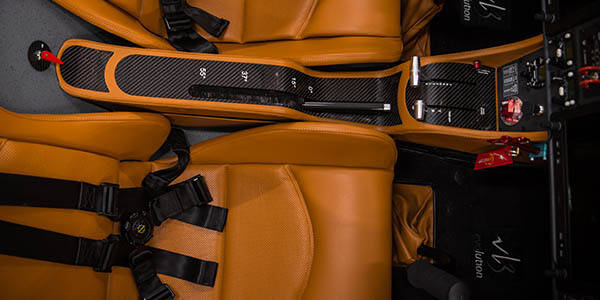

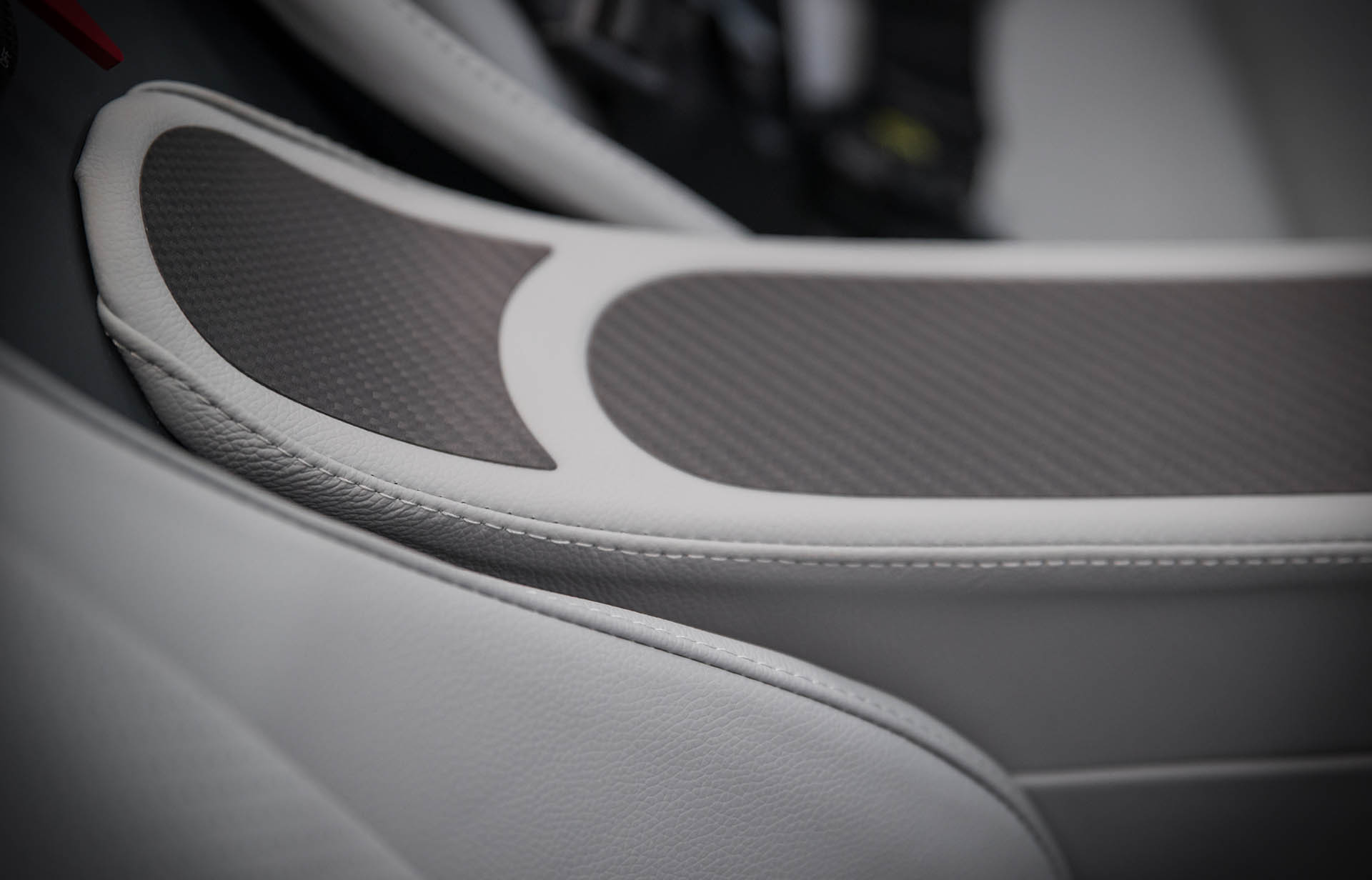

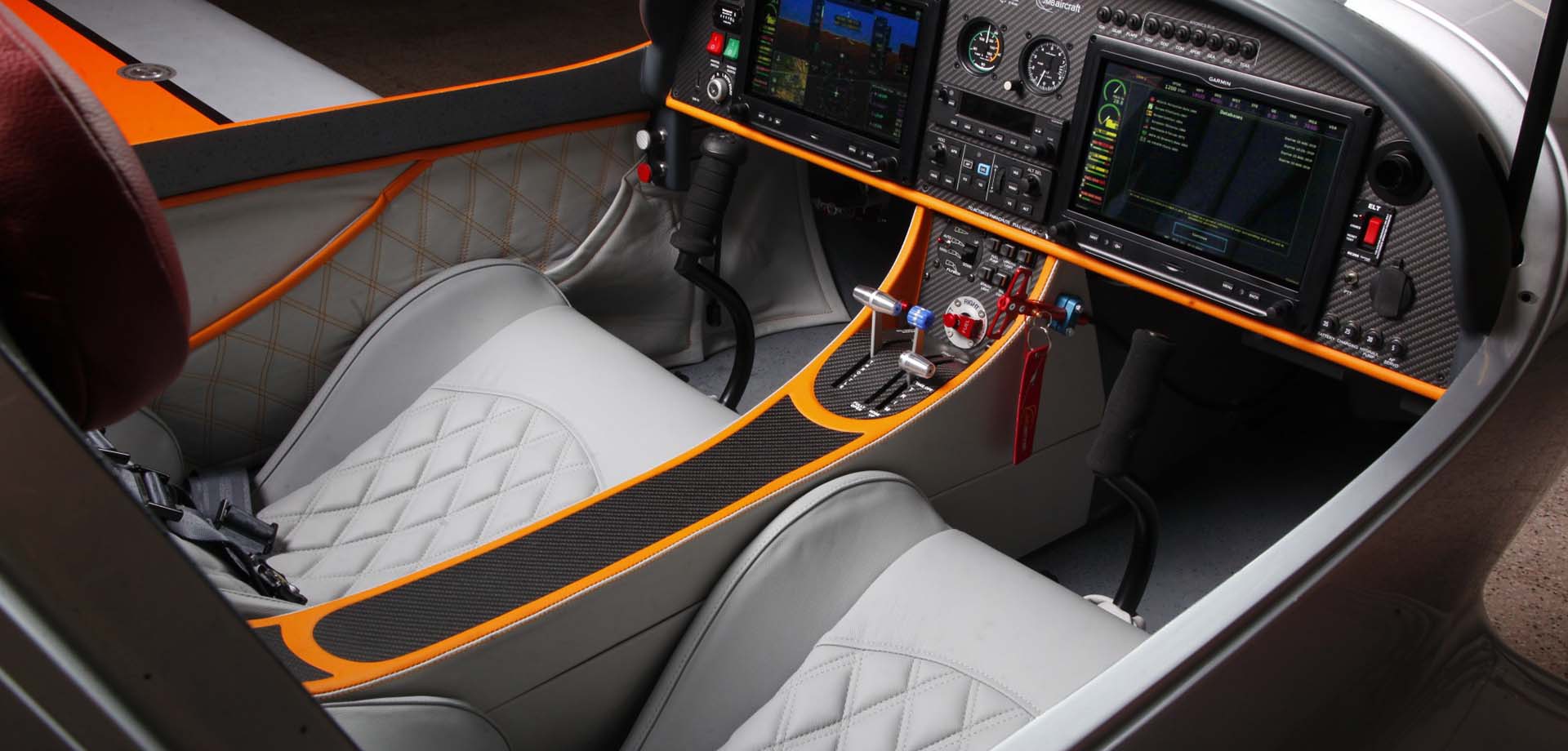

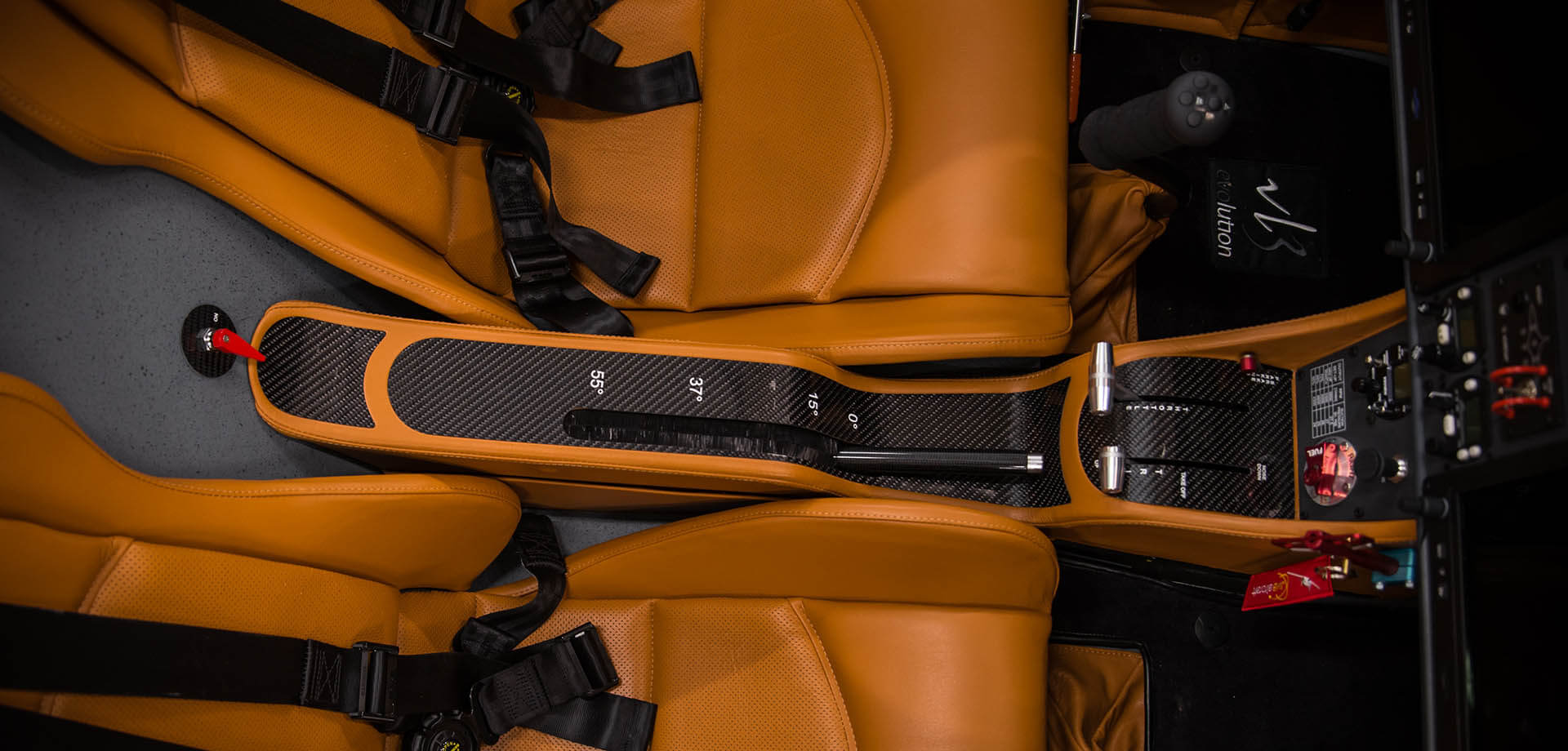

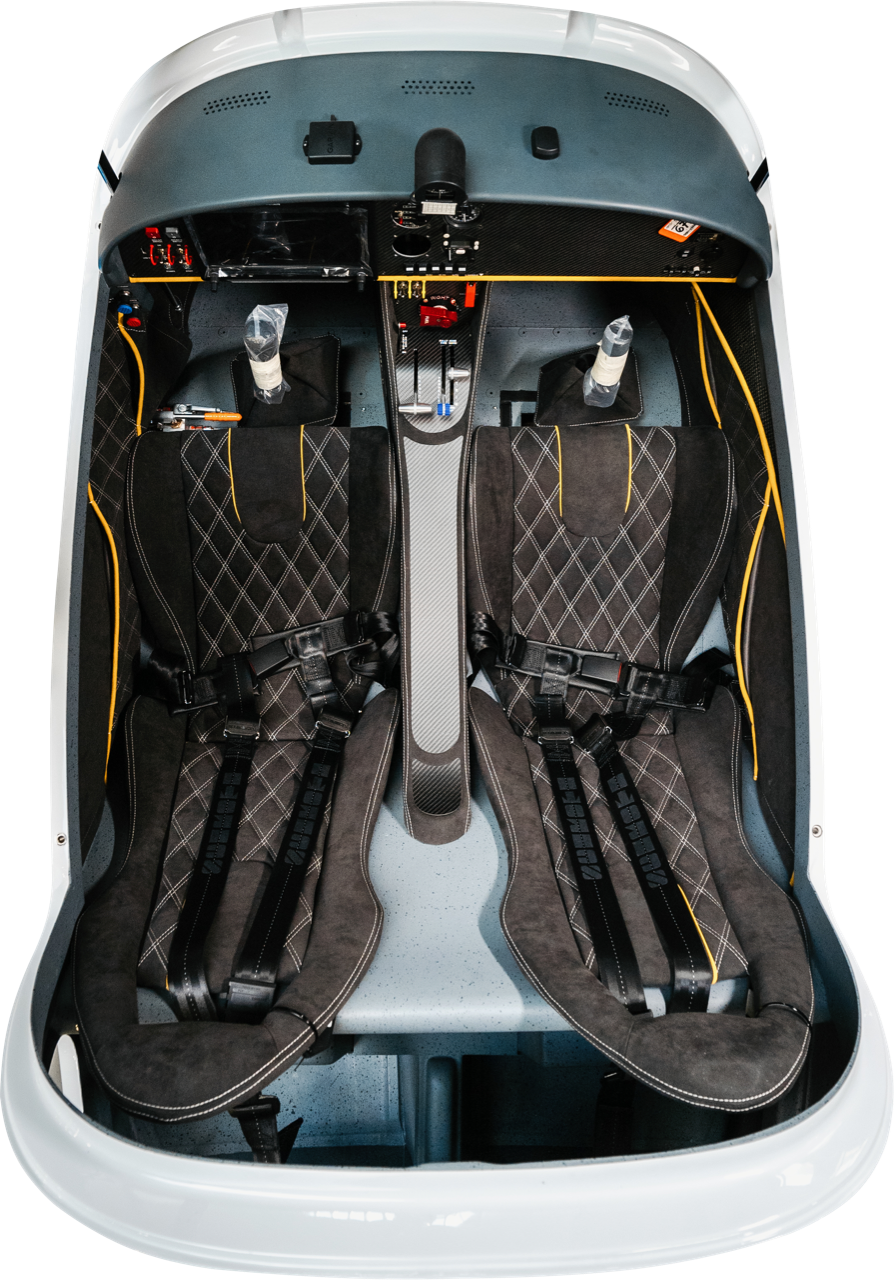

1Cockpit

The cabin area features clean lines and a minimalist, contemporary design. The combination of carbon and kevlar fibers, which are extremely tough, provide safety to the crew in case of an emergency landing.
2Canopy

The acrylic glass canopy allows for spectacular views from the aircraft throughout your journey. Order it in your choice of clear/blue/green or brown.

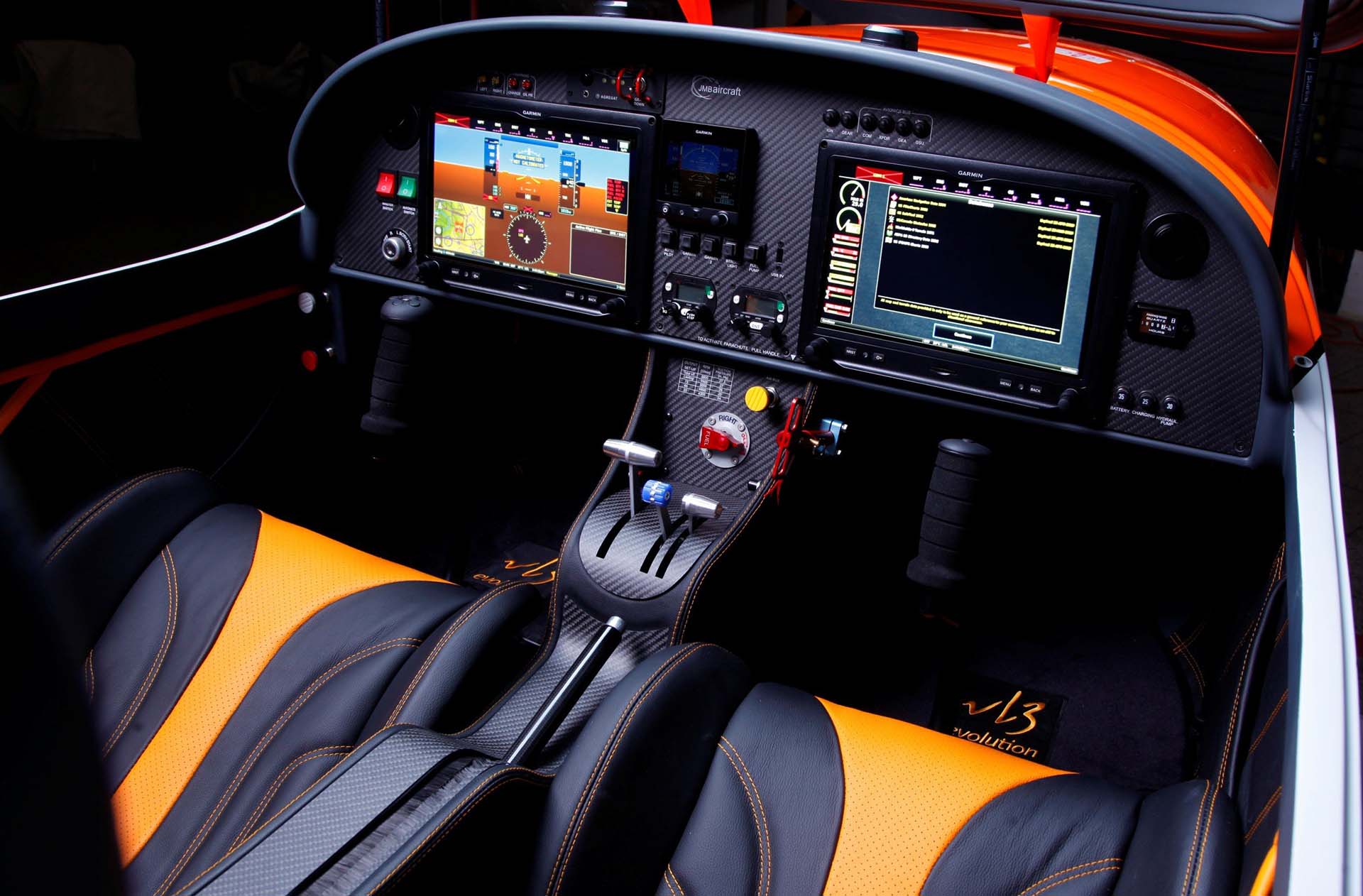

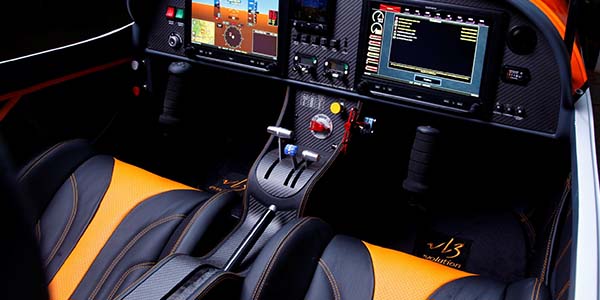

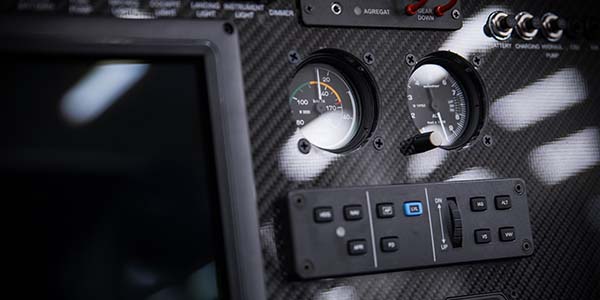

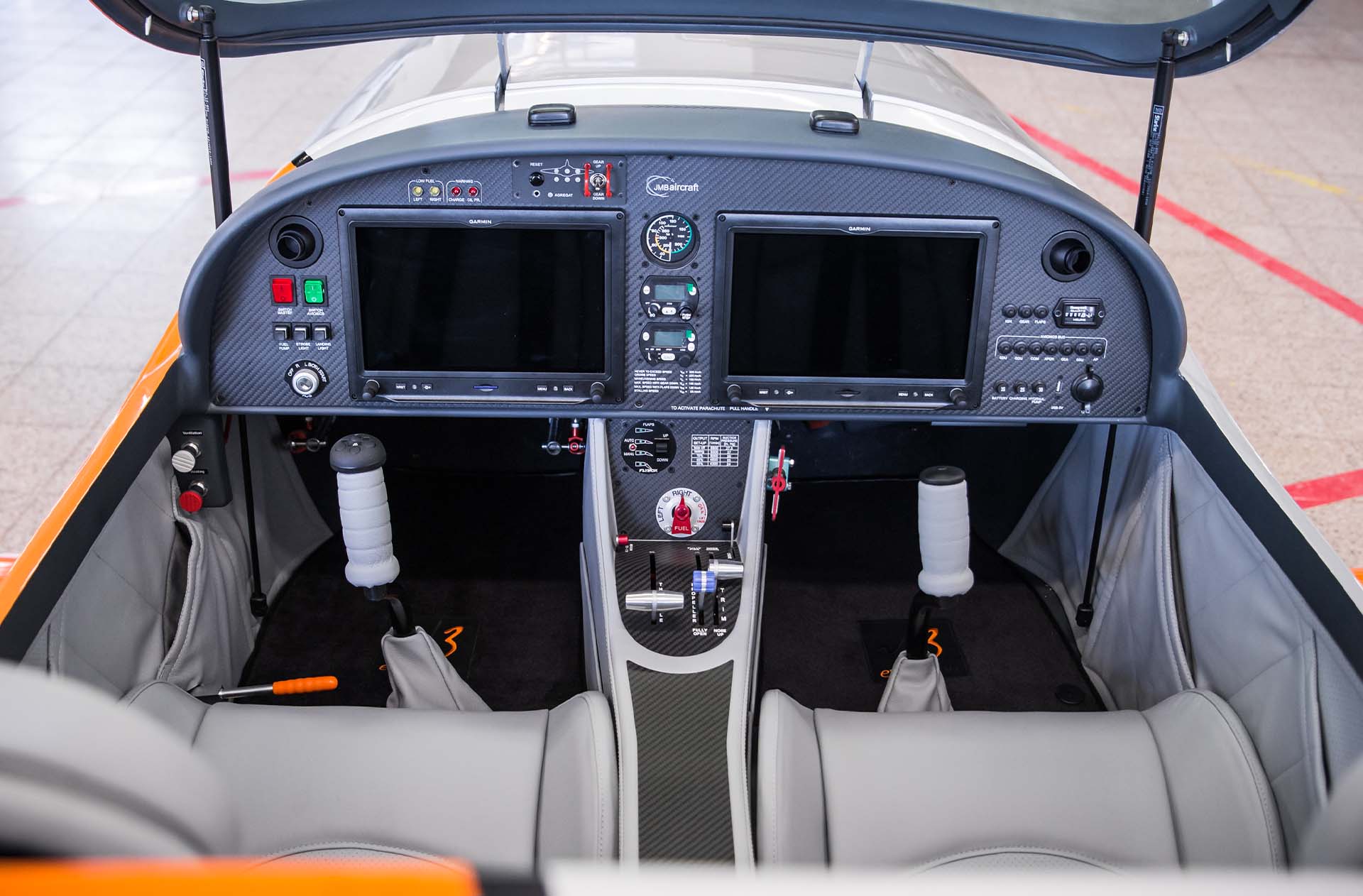

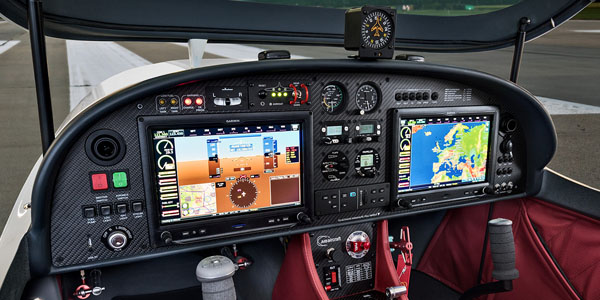

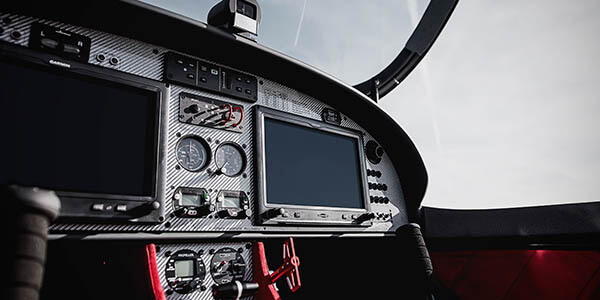

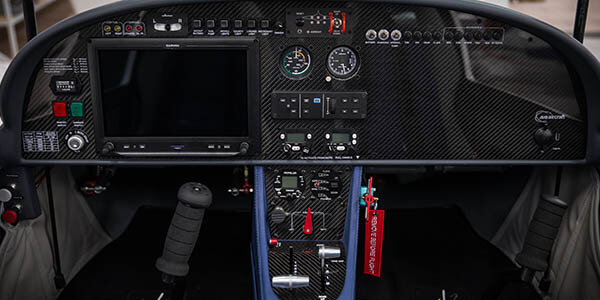

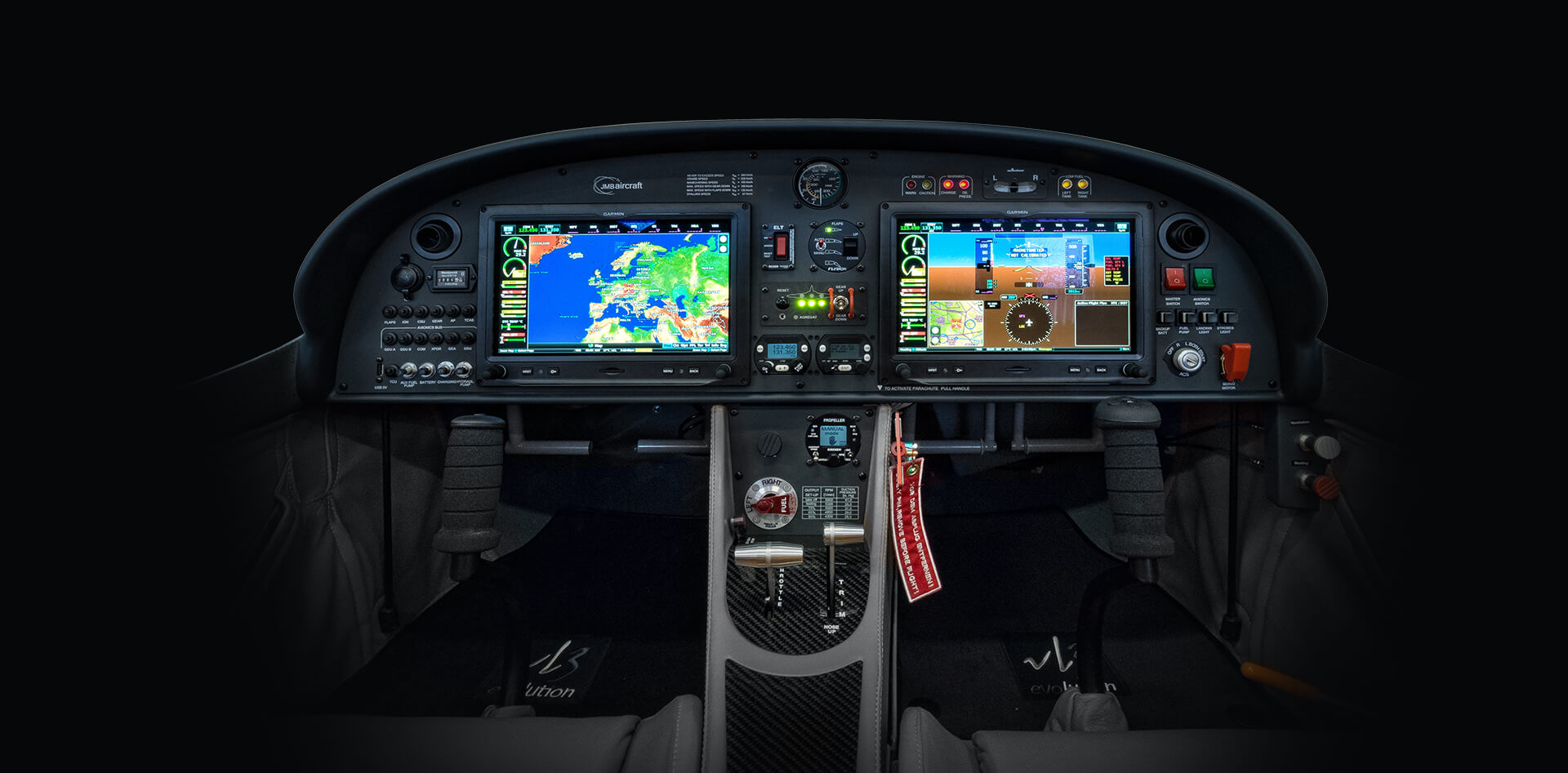

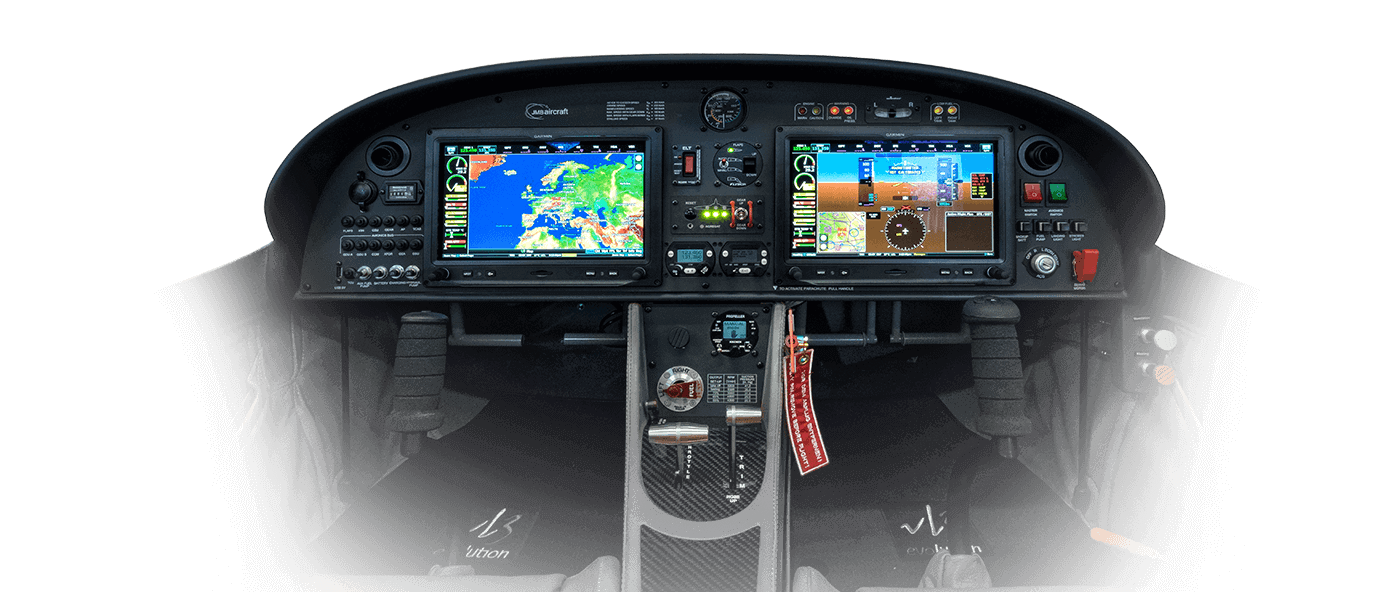

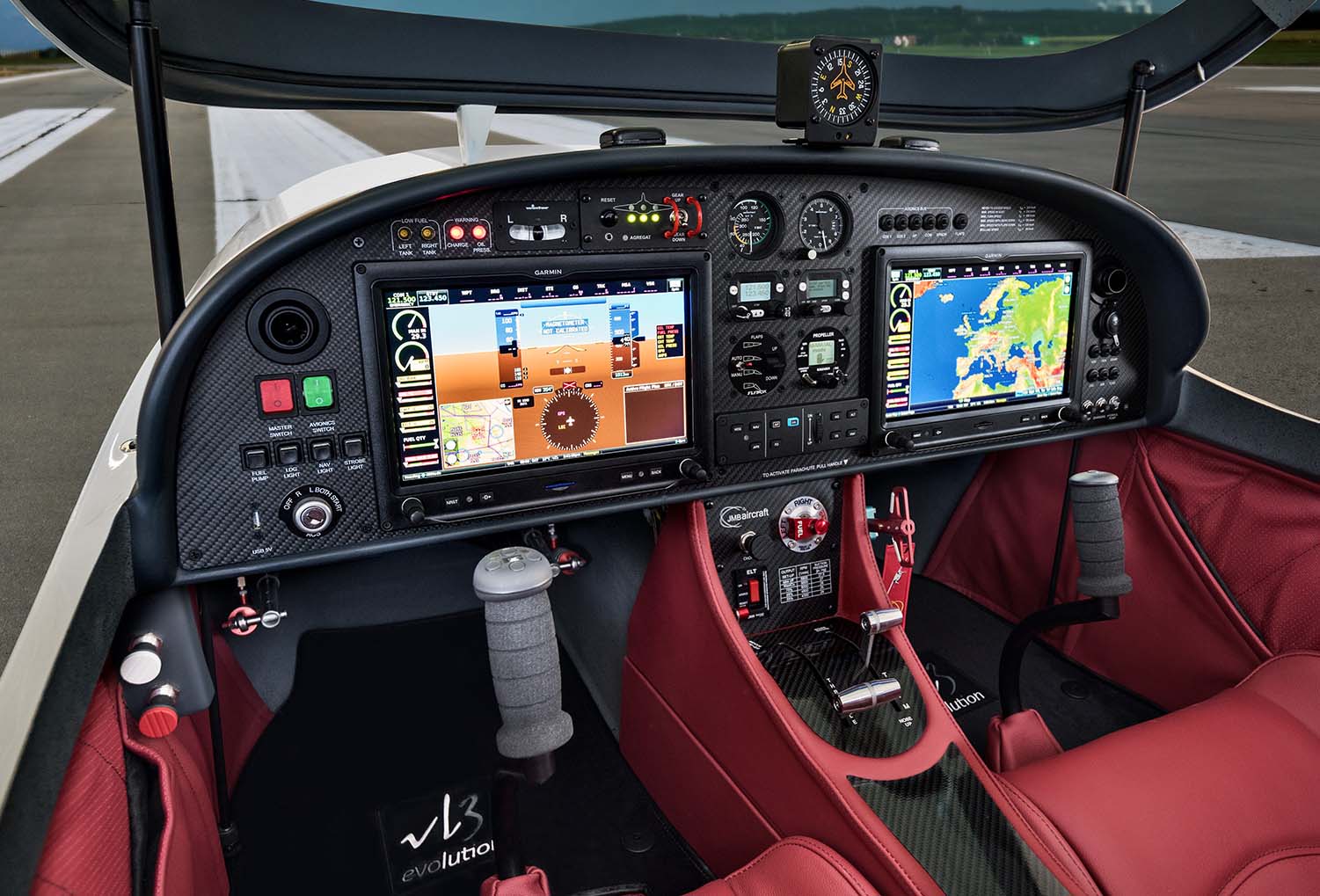

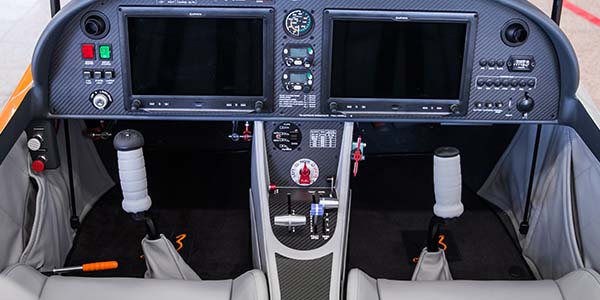

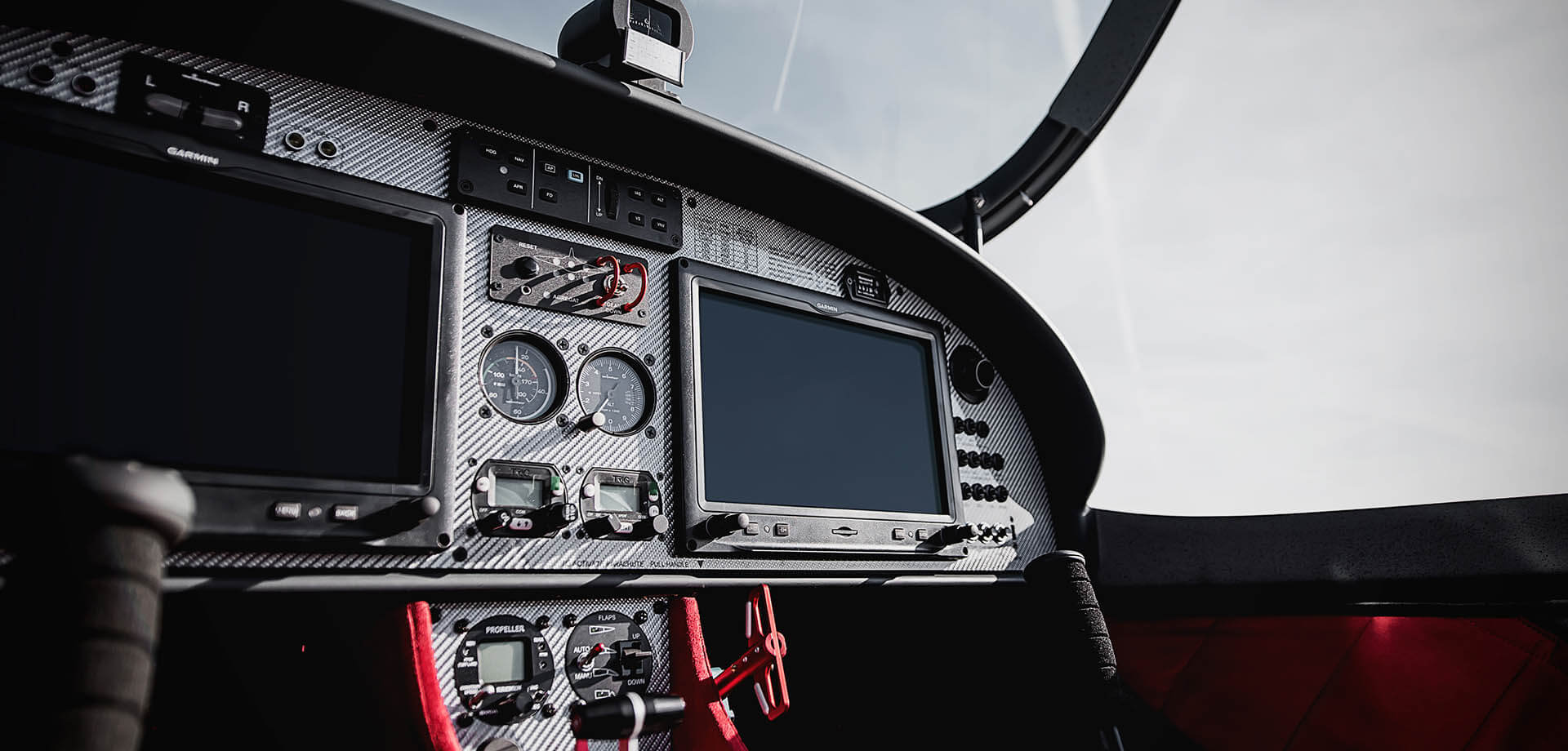

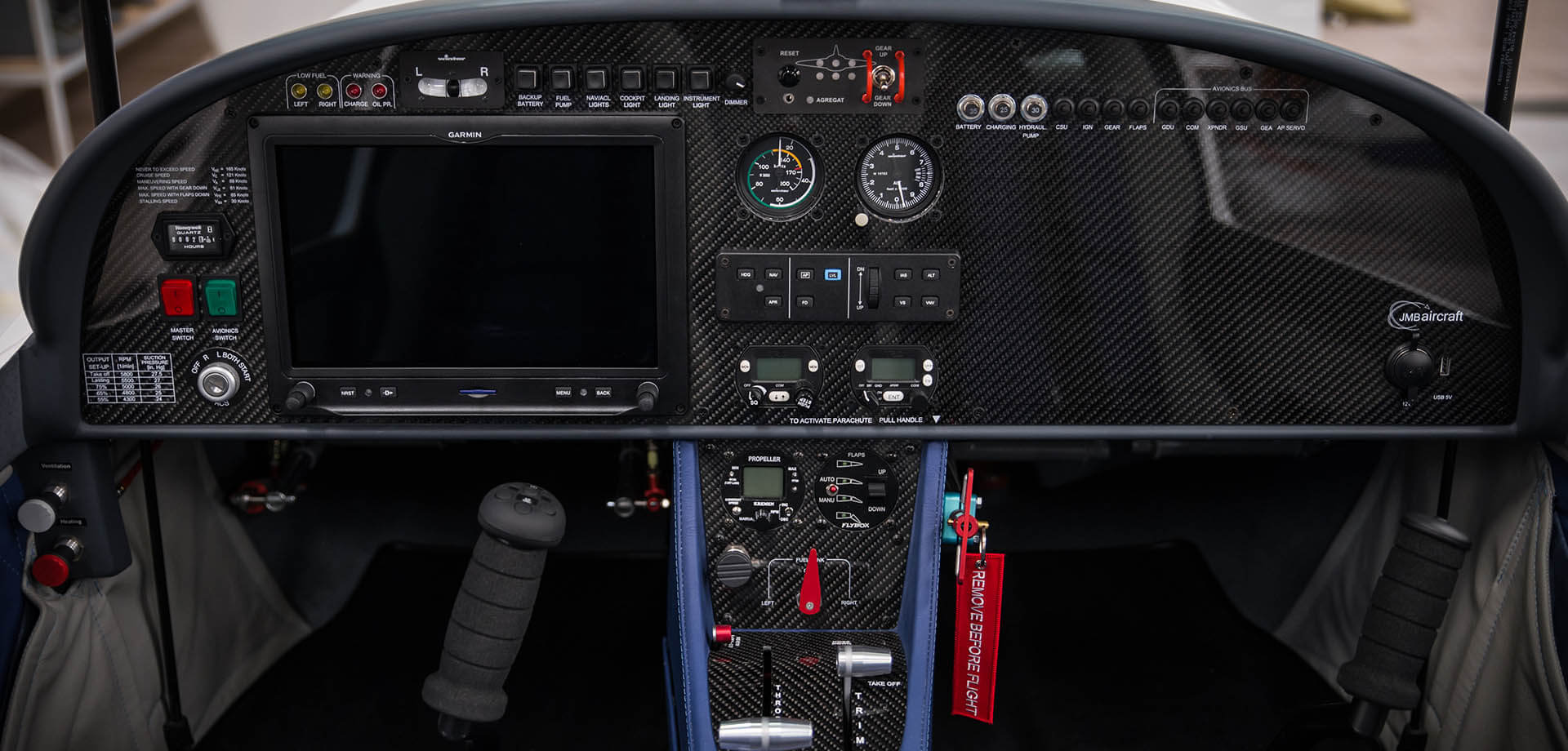

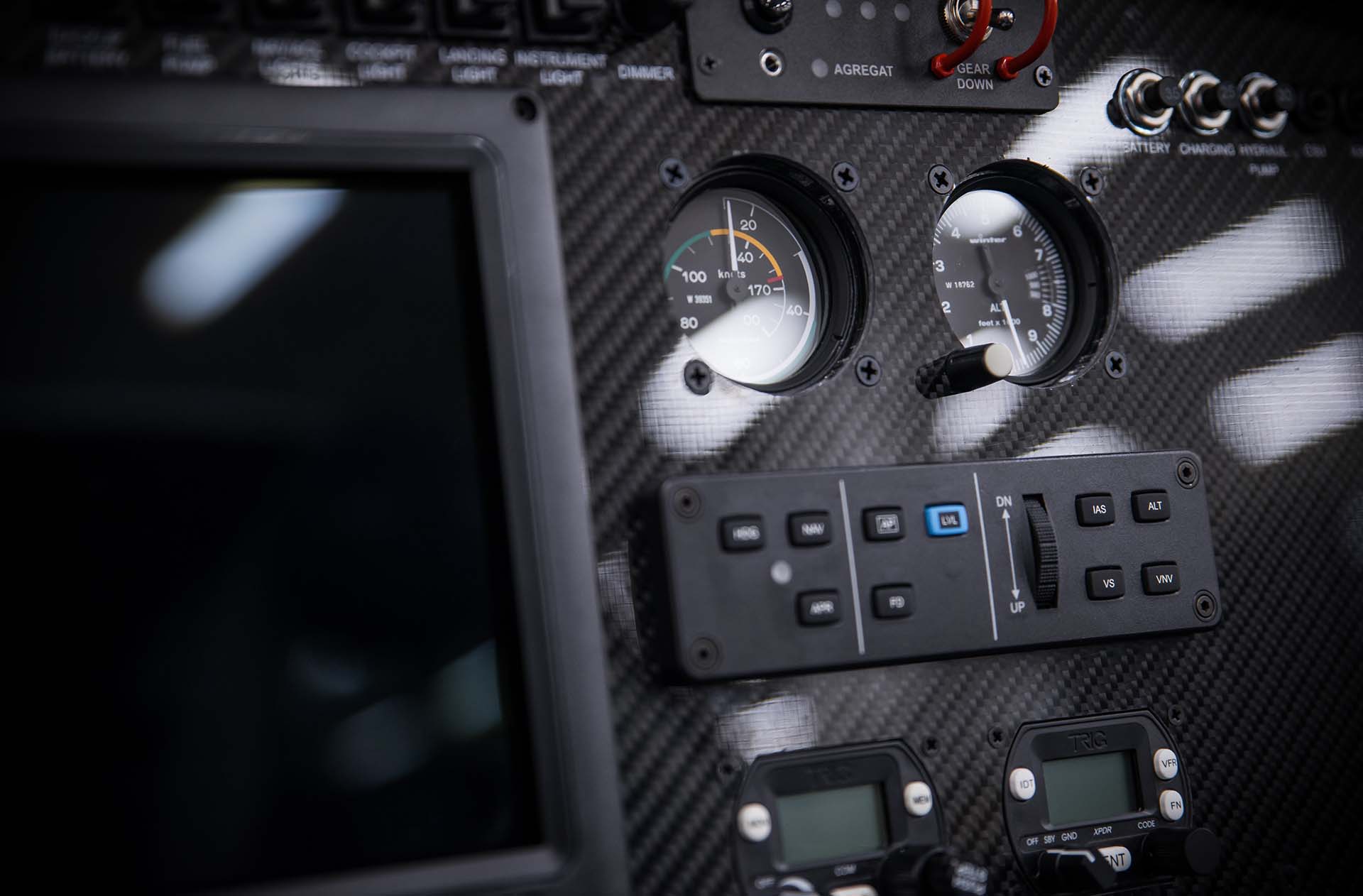

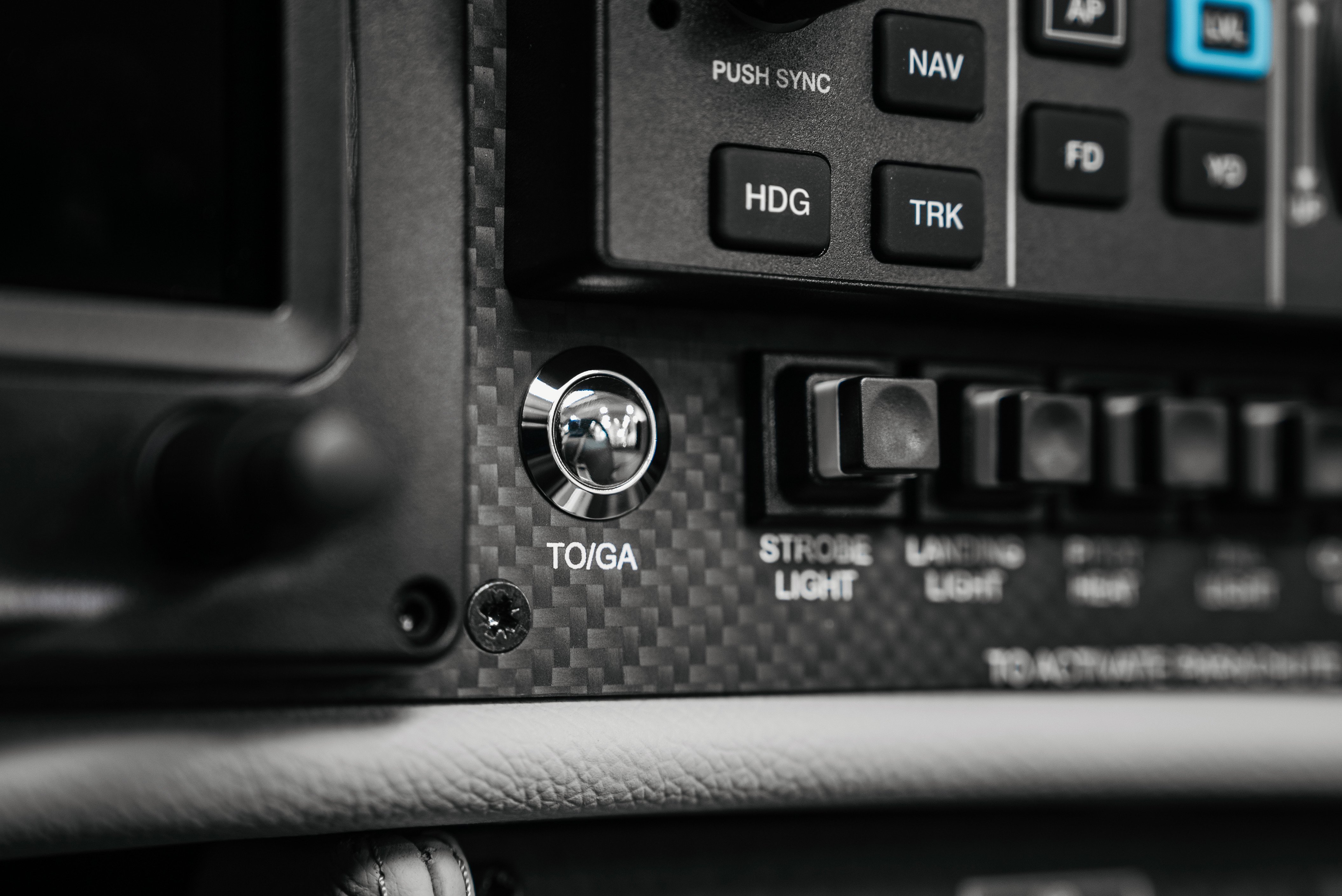

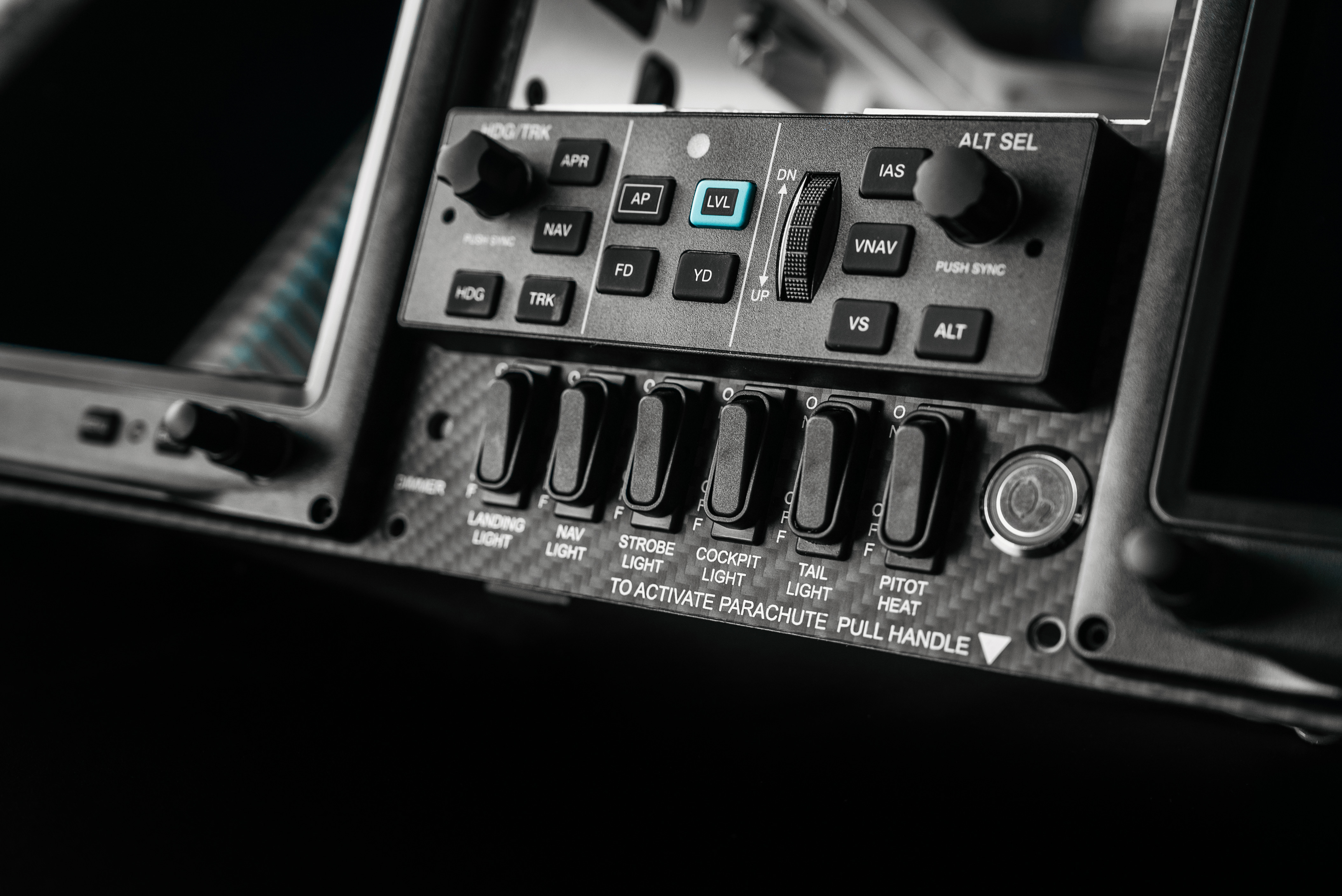

3Dashboard

Each dashboard is made to measure for the customer, according to the specifications of their personalized aircraft. The instruments are mounted in a laser-cut plate with surface inscriptions created by serigraphy. You can choose to have a carbon look panel like an option.

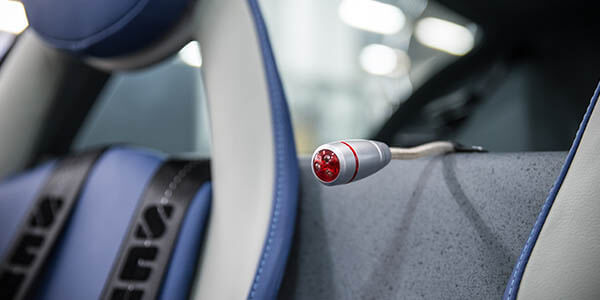

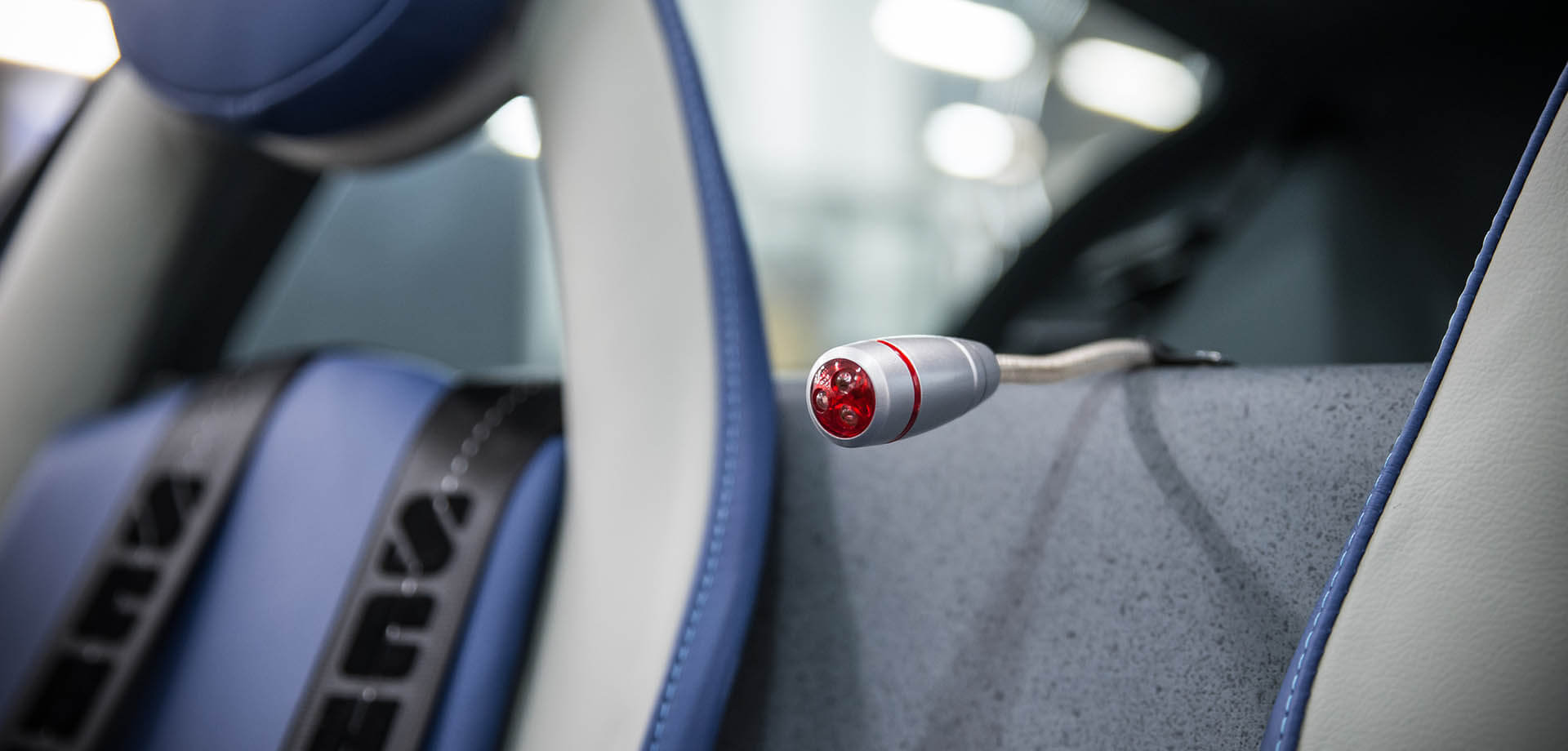

4Ventilation and heating

The aircraft is equipped with a heating and ventilation system. Warm air is distributed to the leg areas, while cold air is delivered through vents on the dashboard. Strong Aveo cabin ventilation system can be ordered like an option.

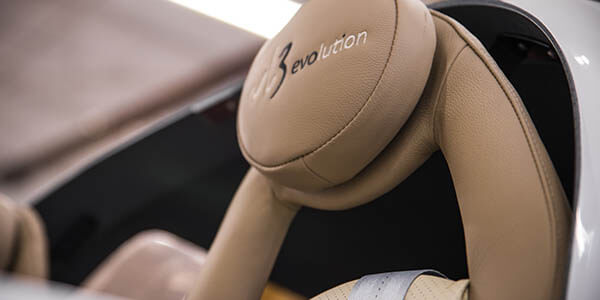

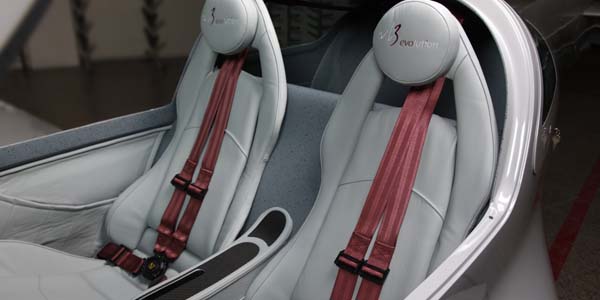

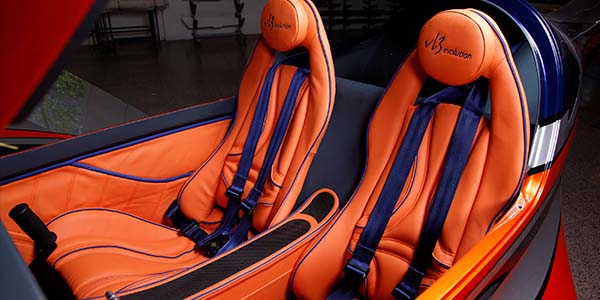

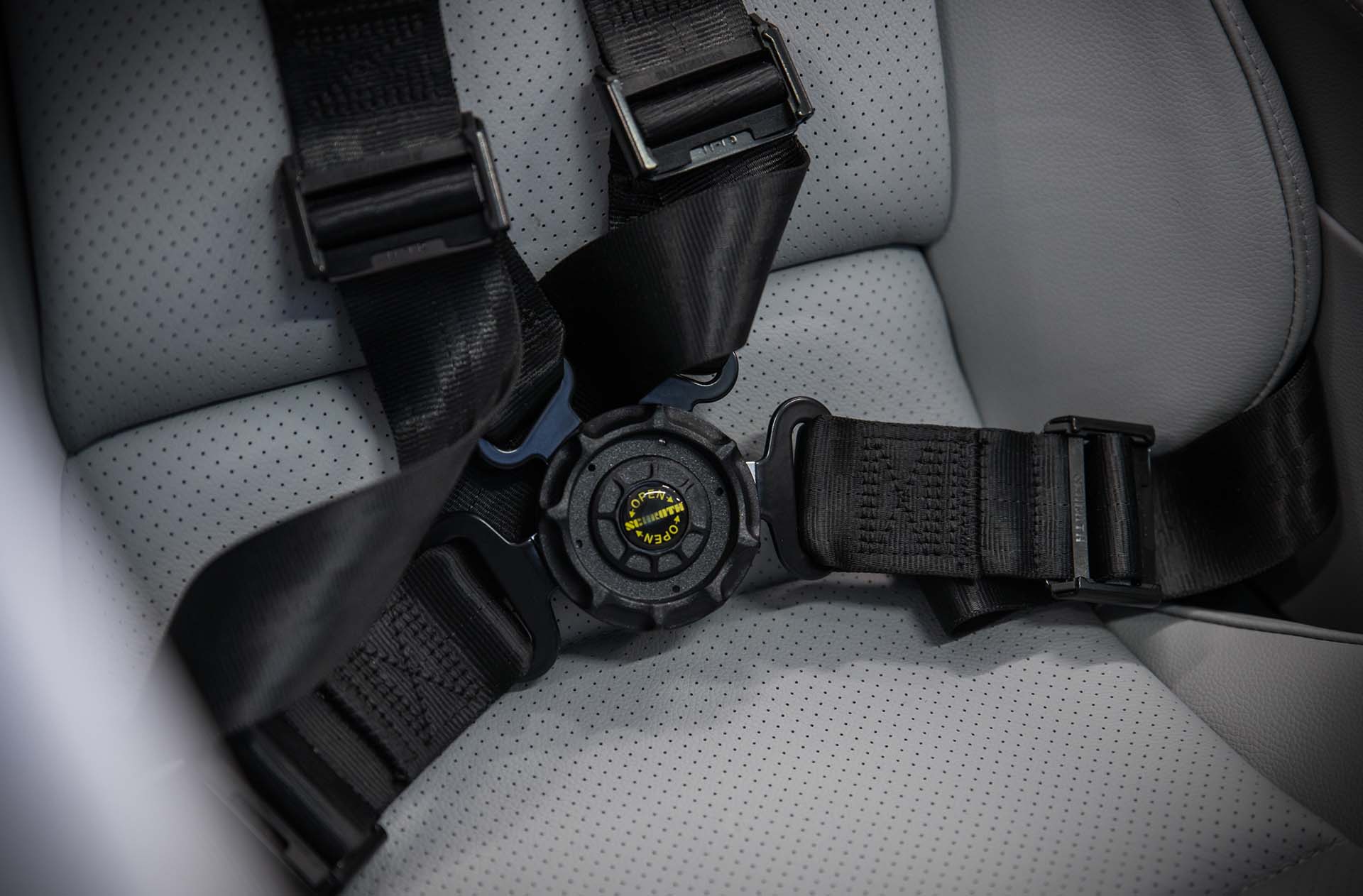

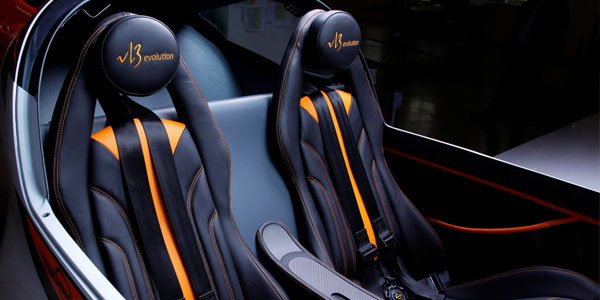

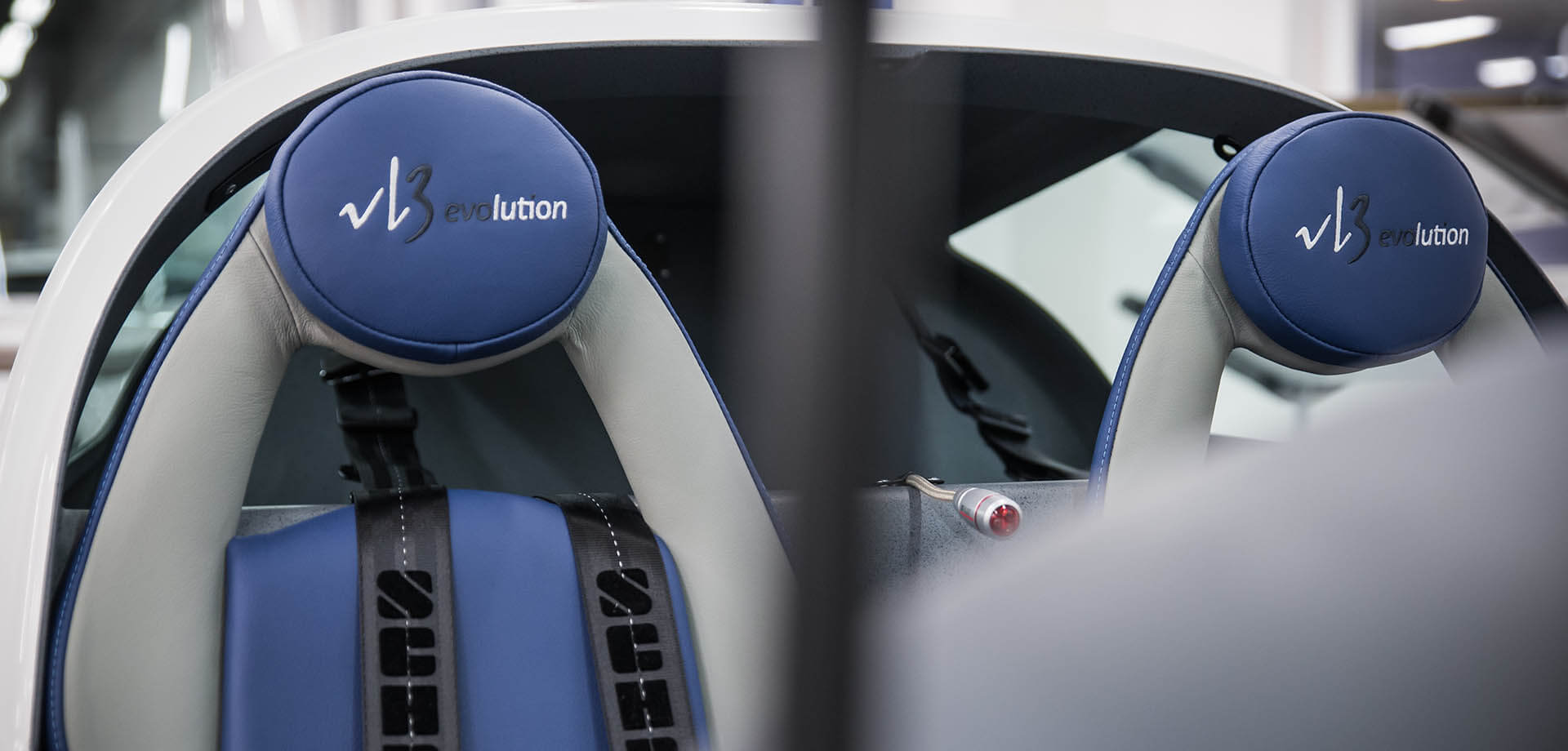

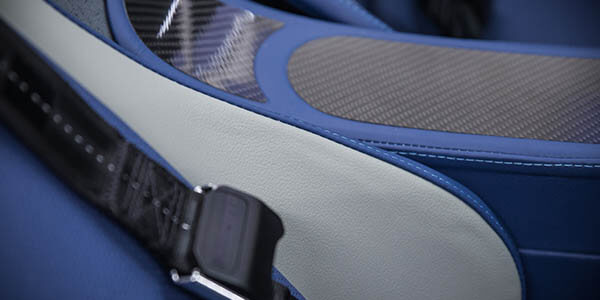

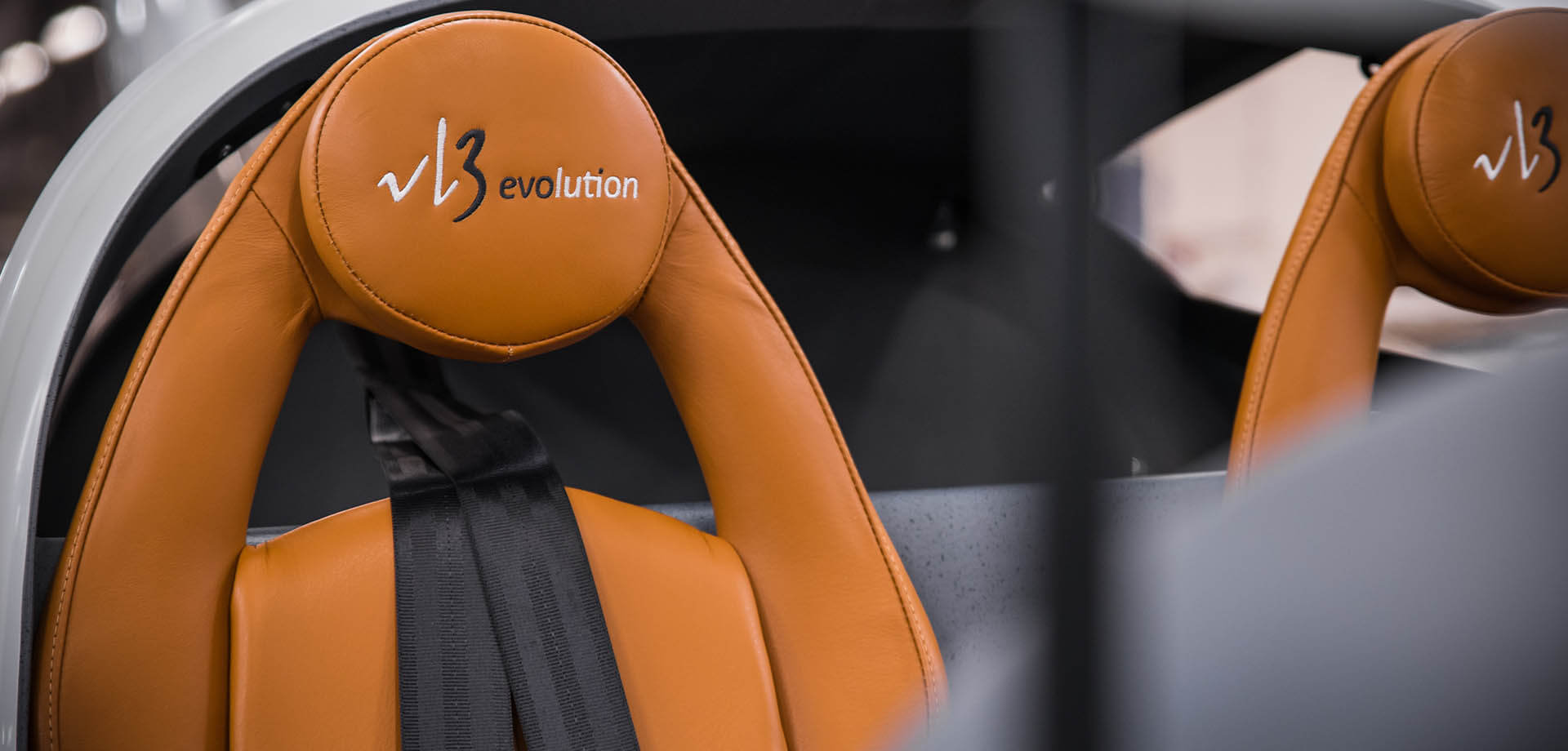

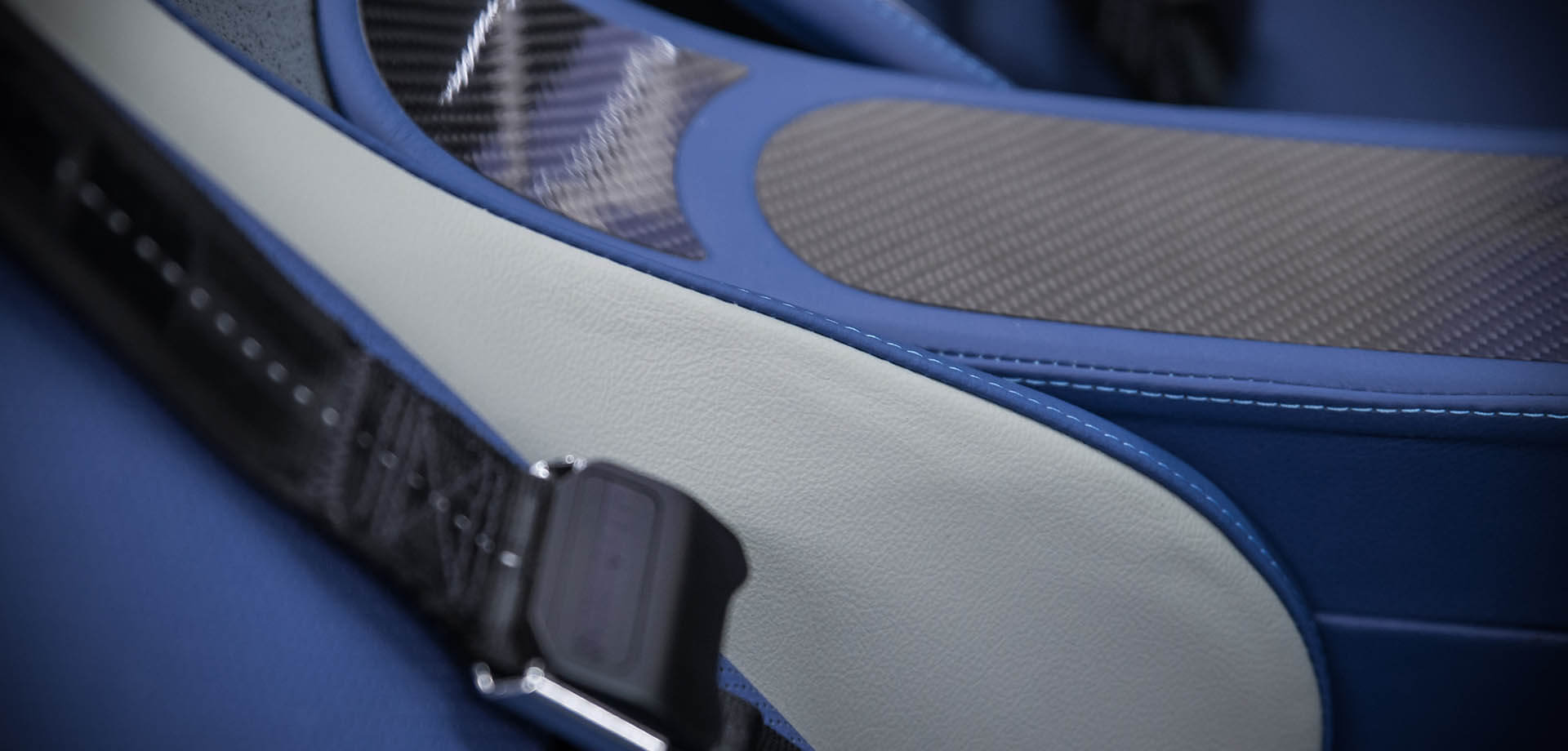

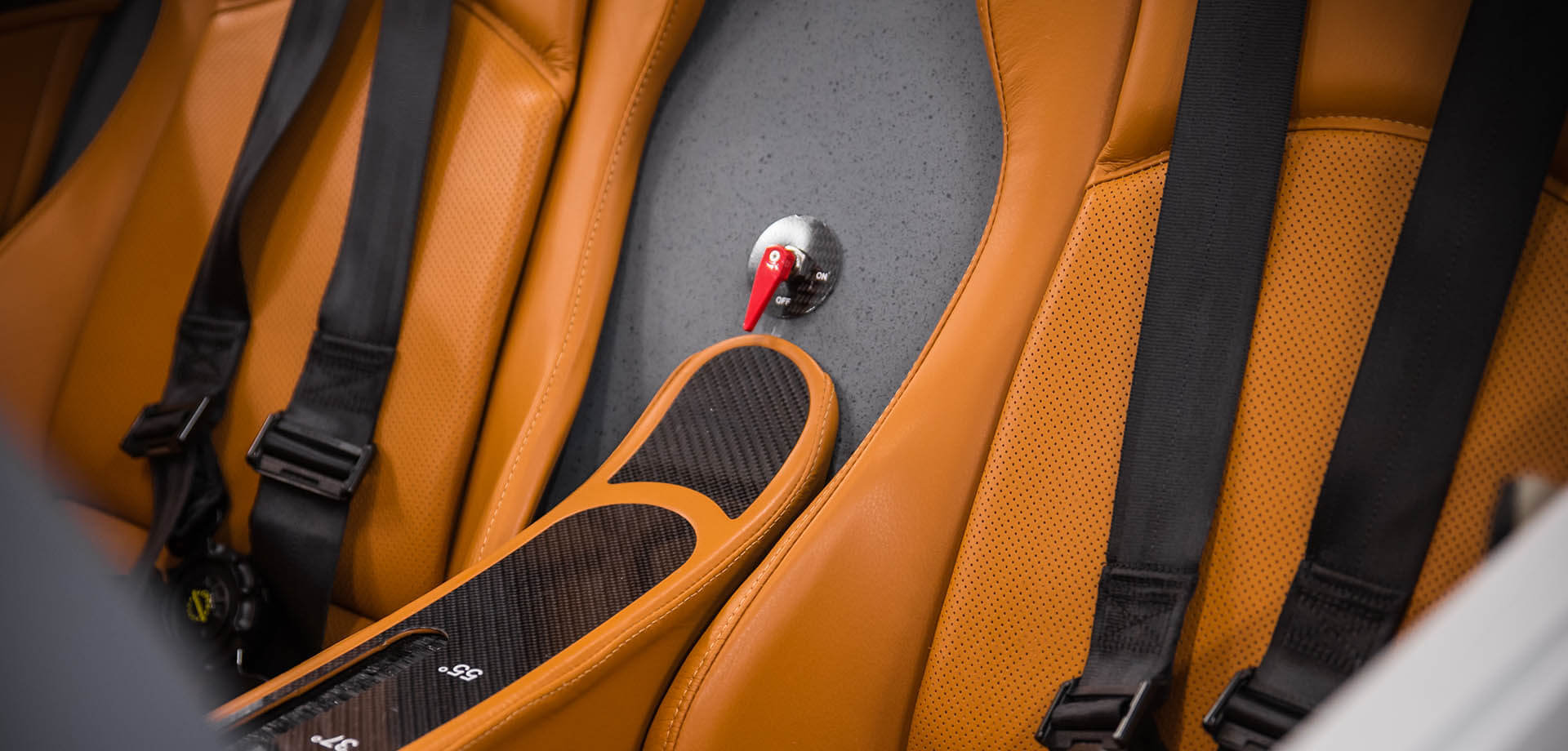

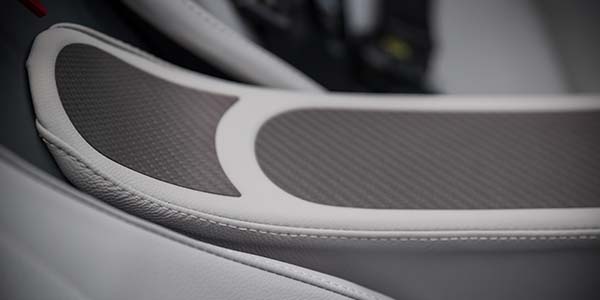

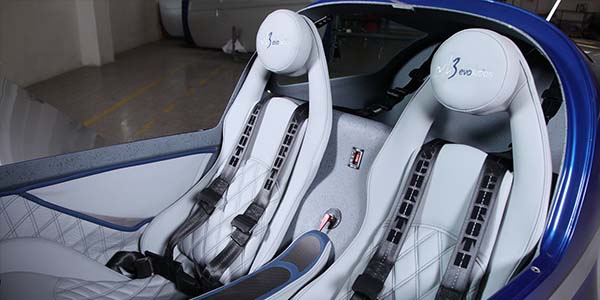

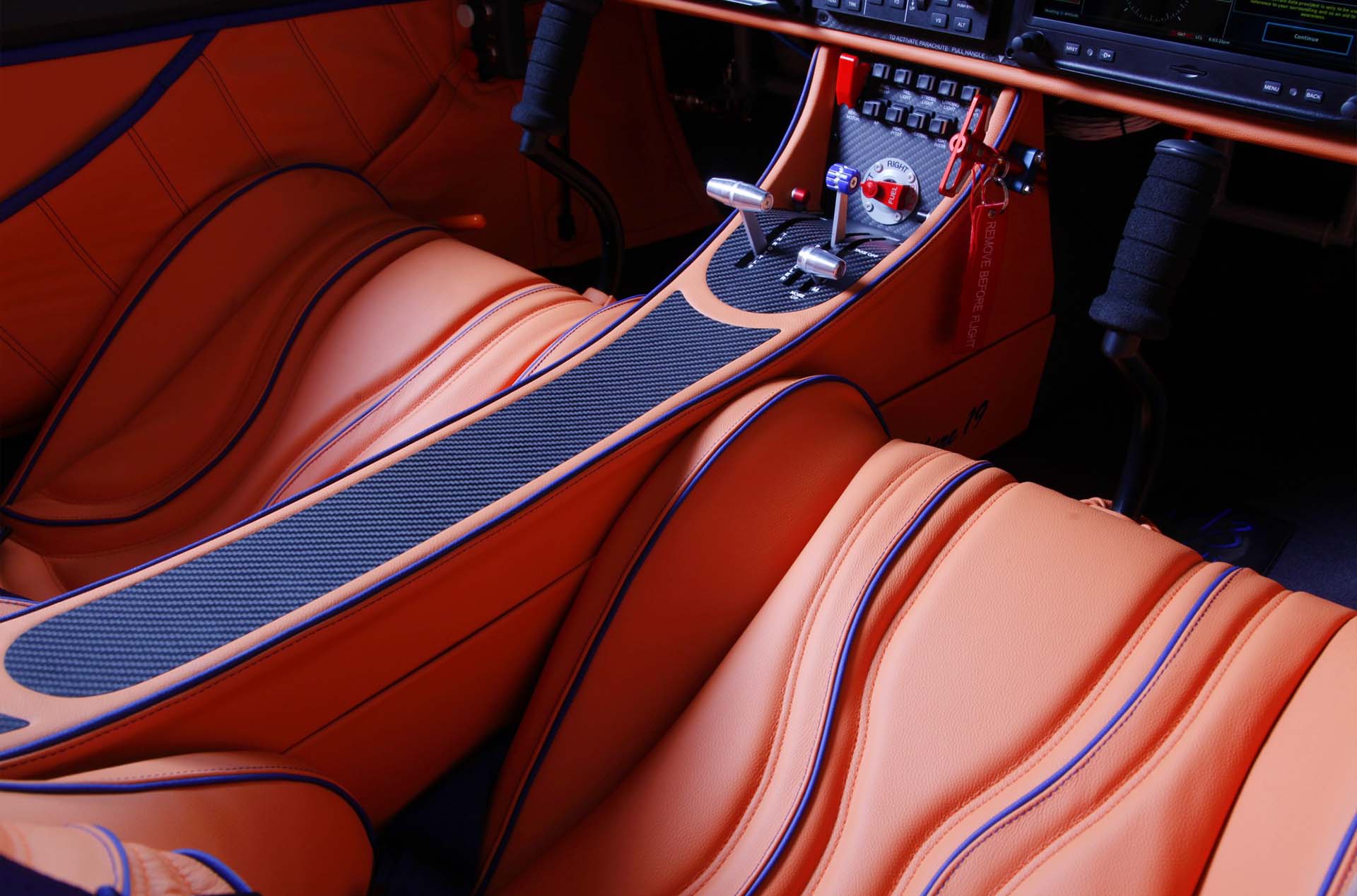

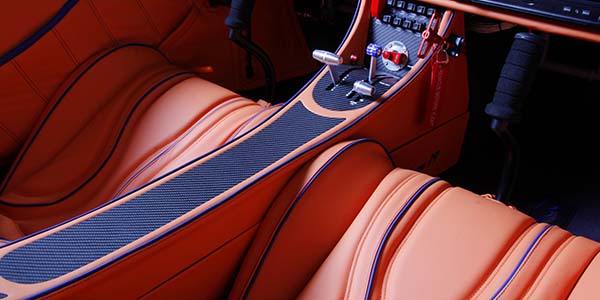

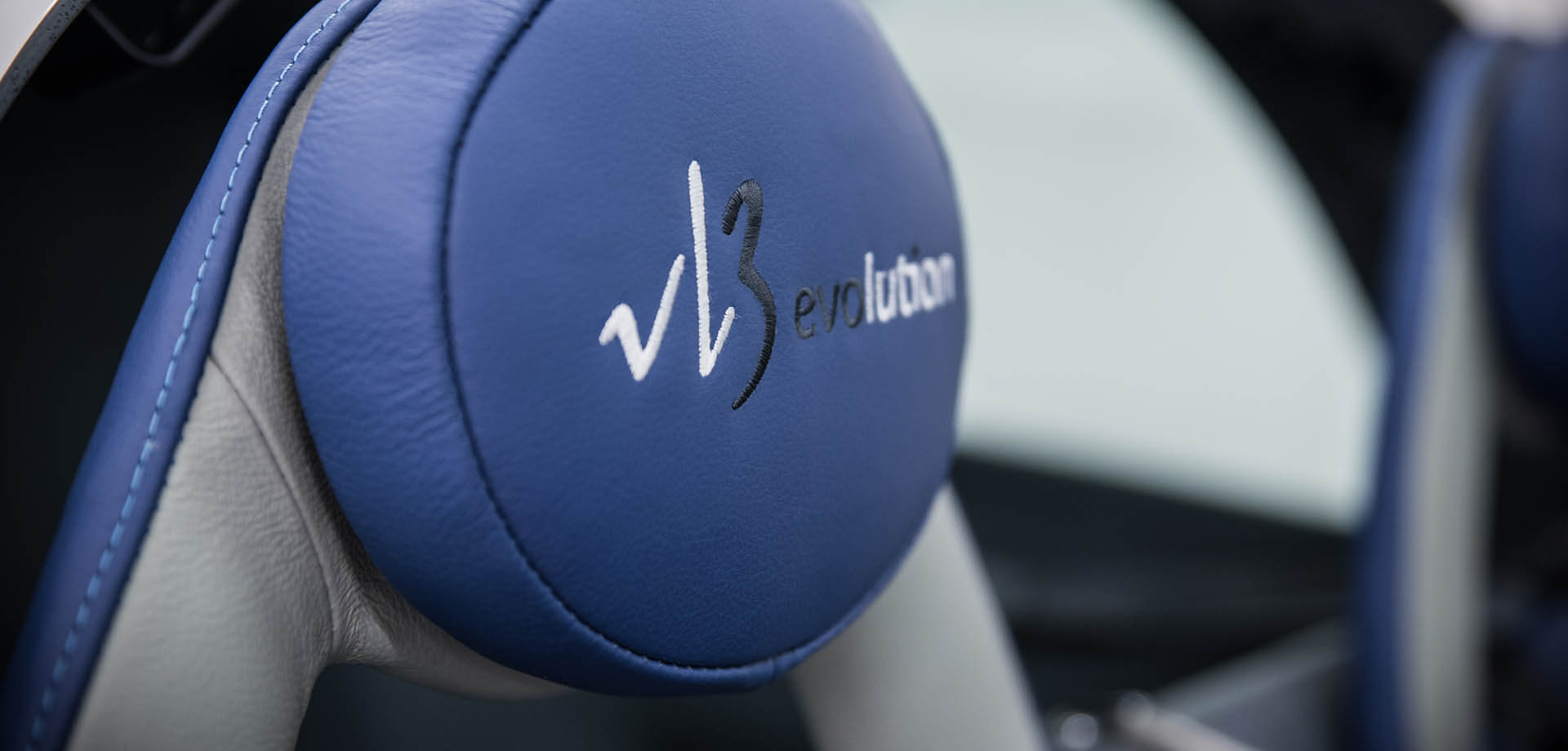

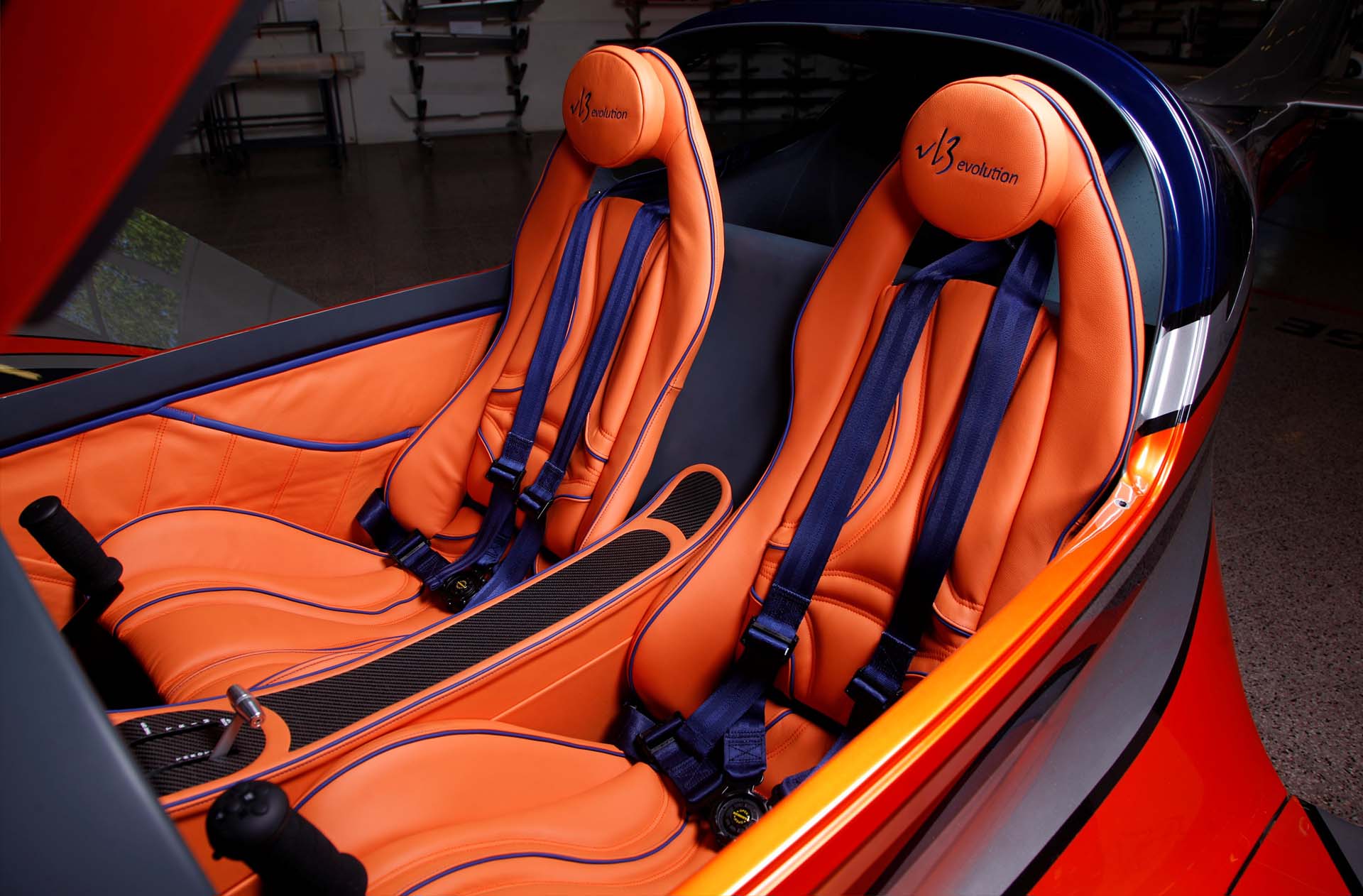

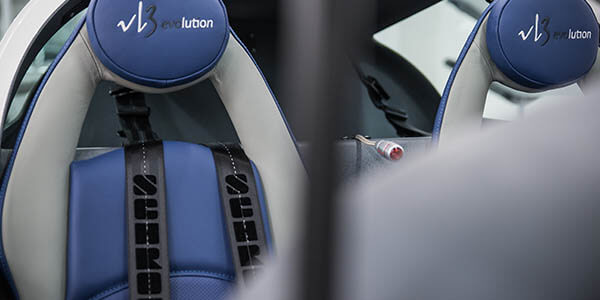

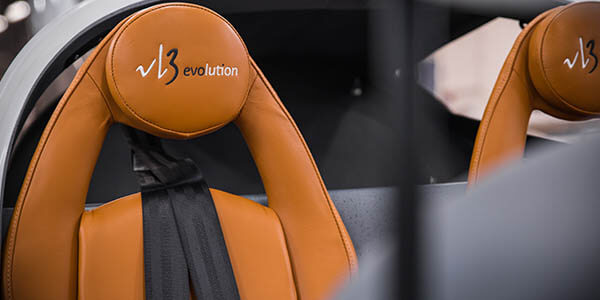

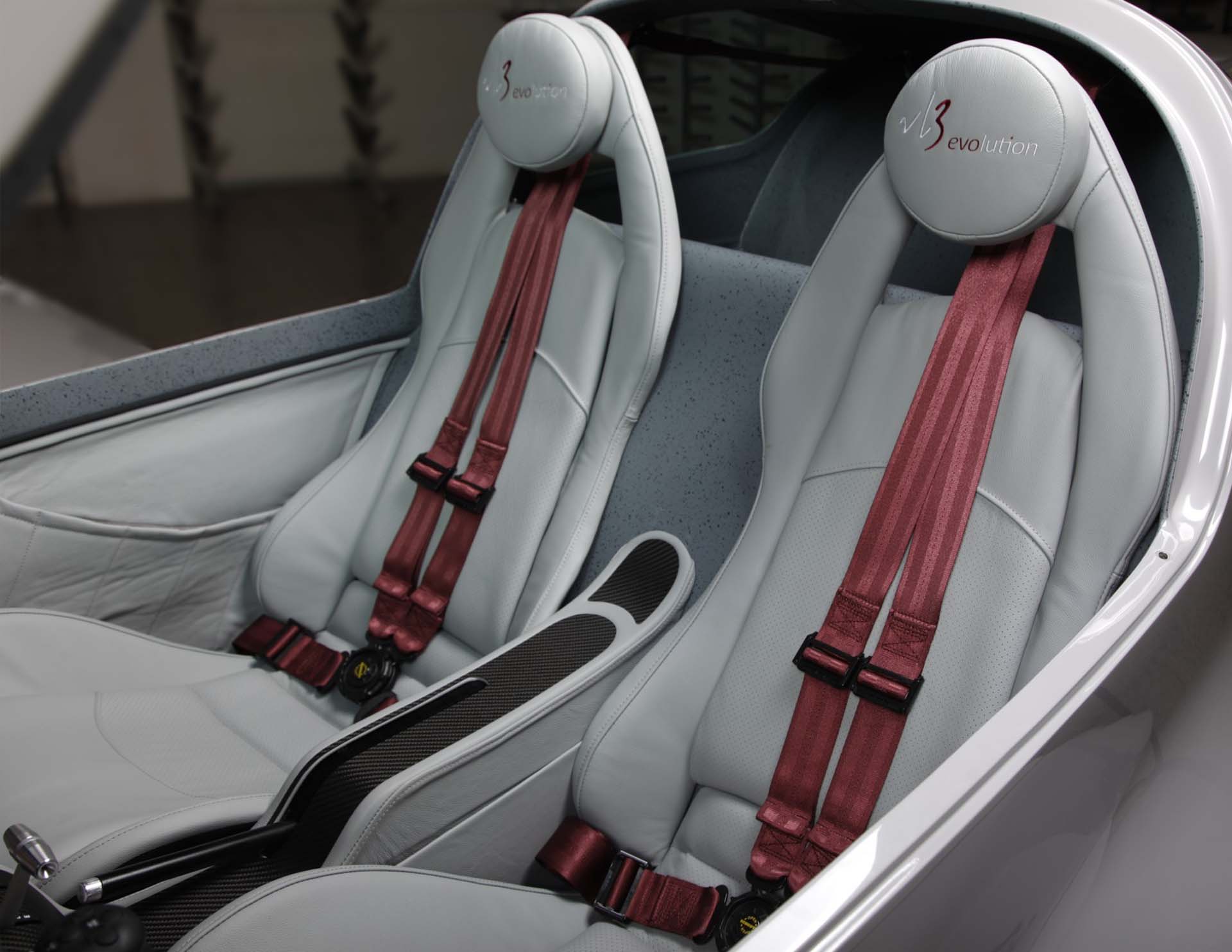

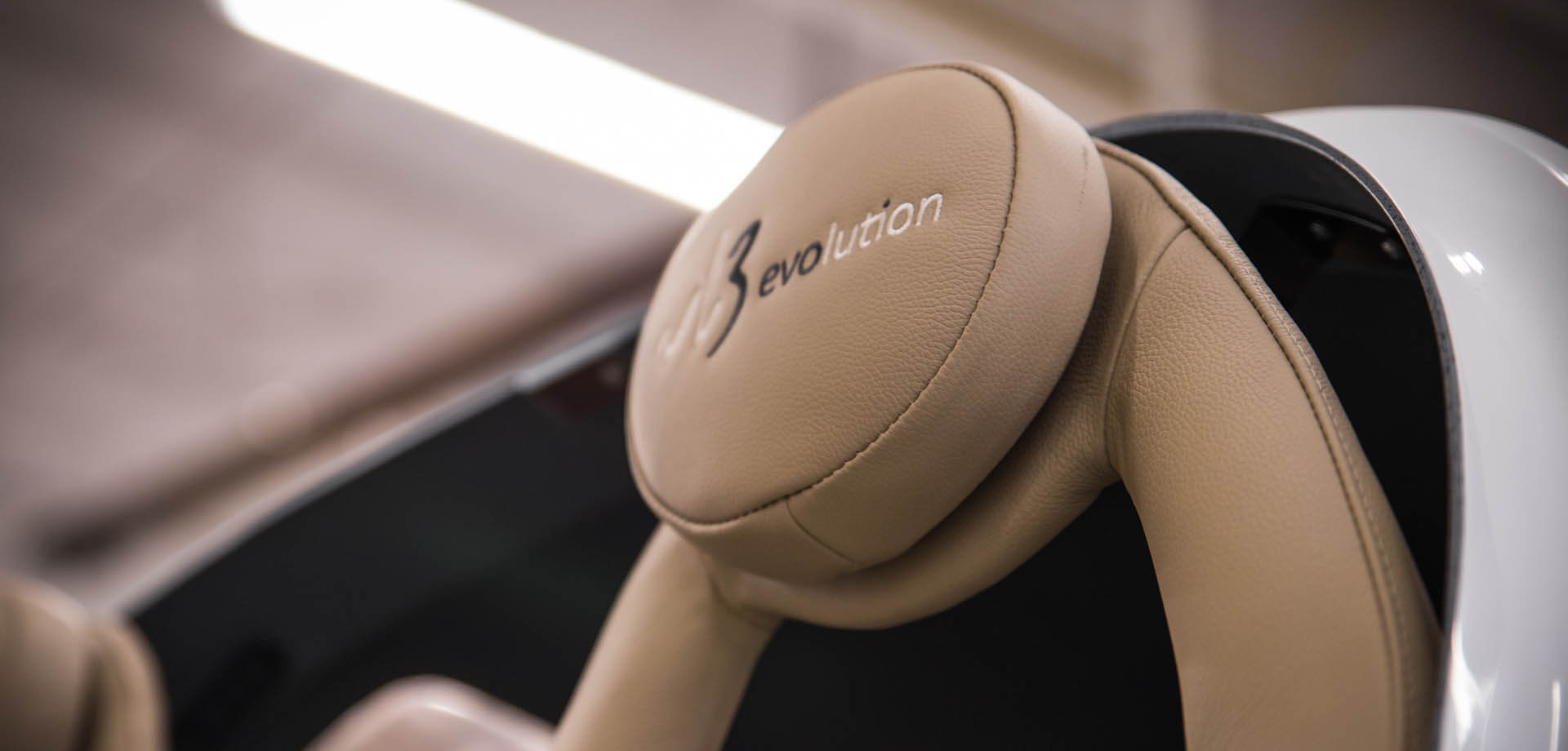

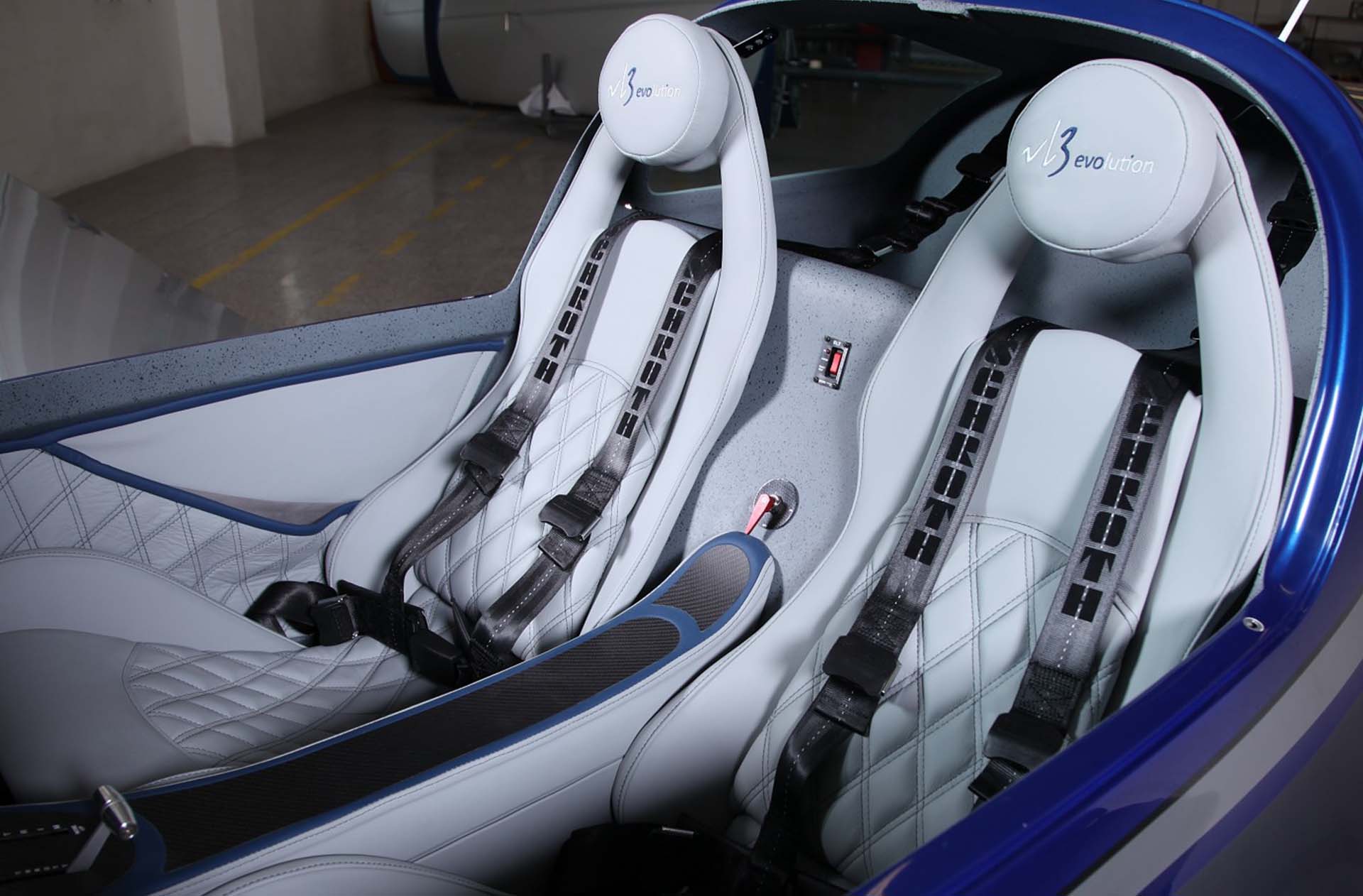

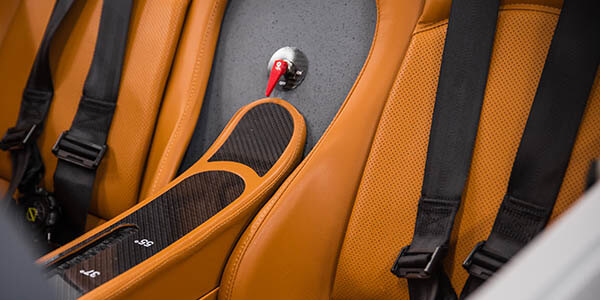

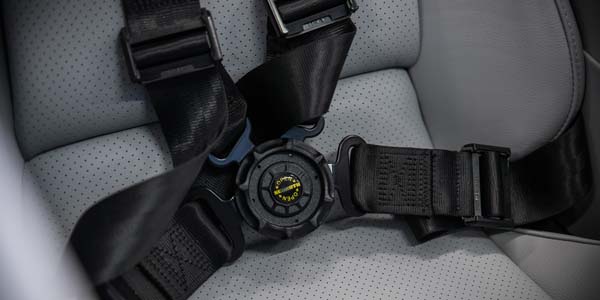

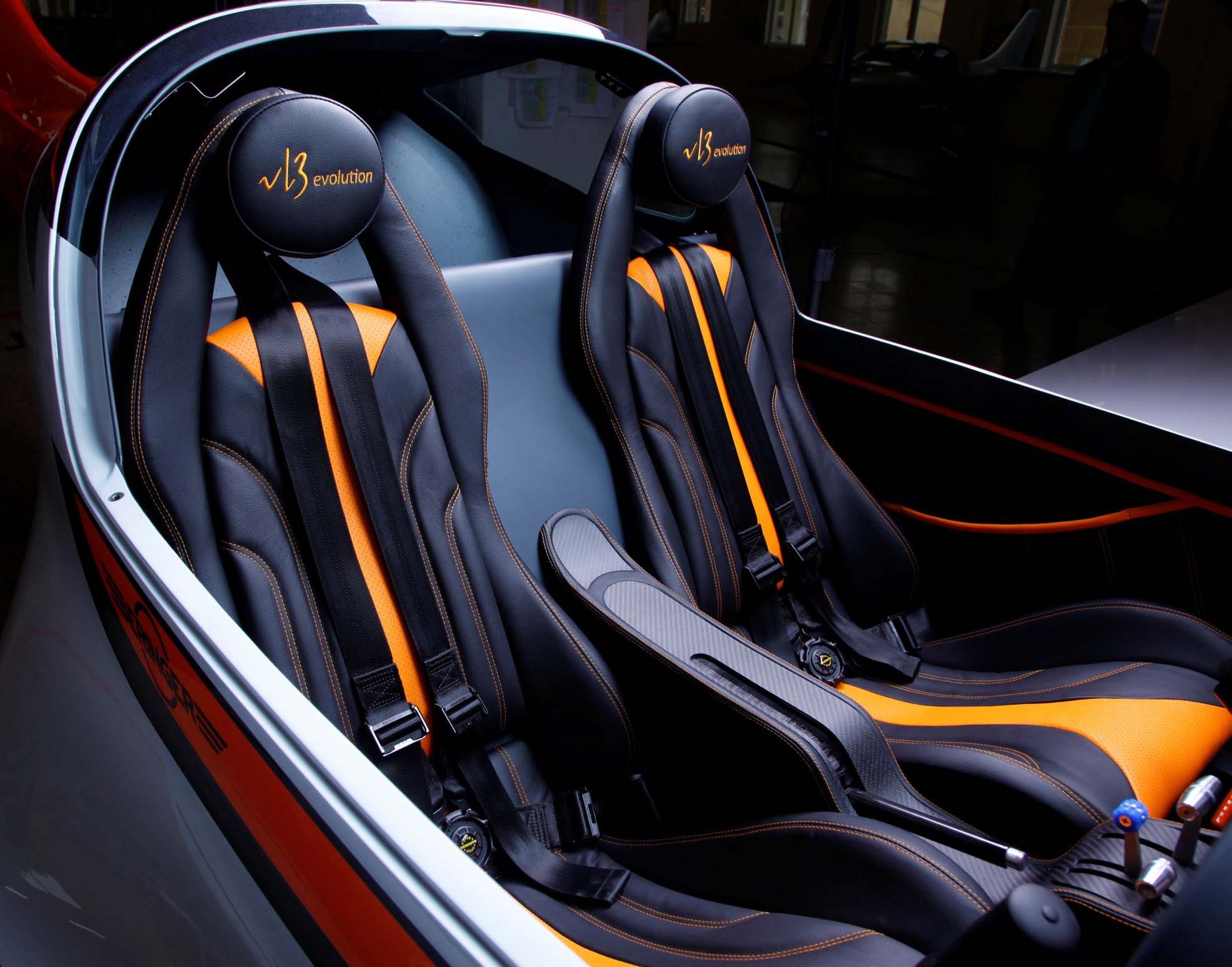

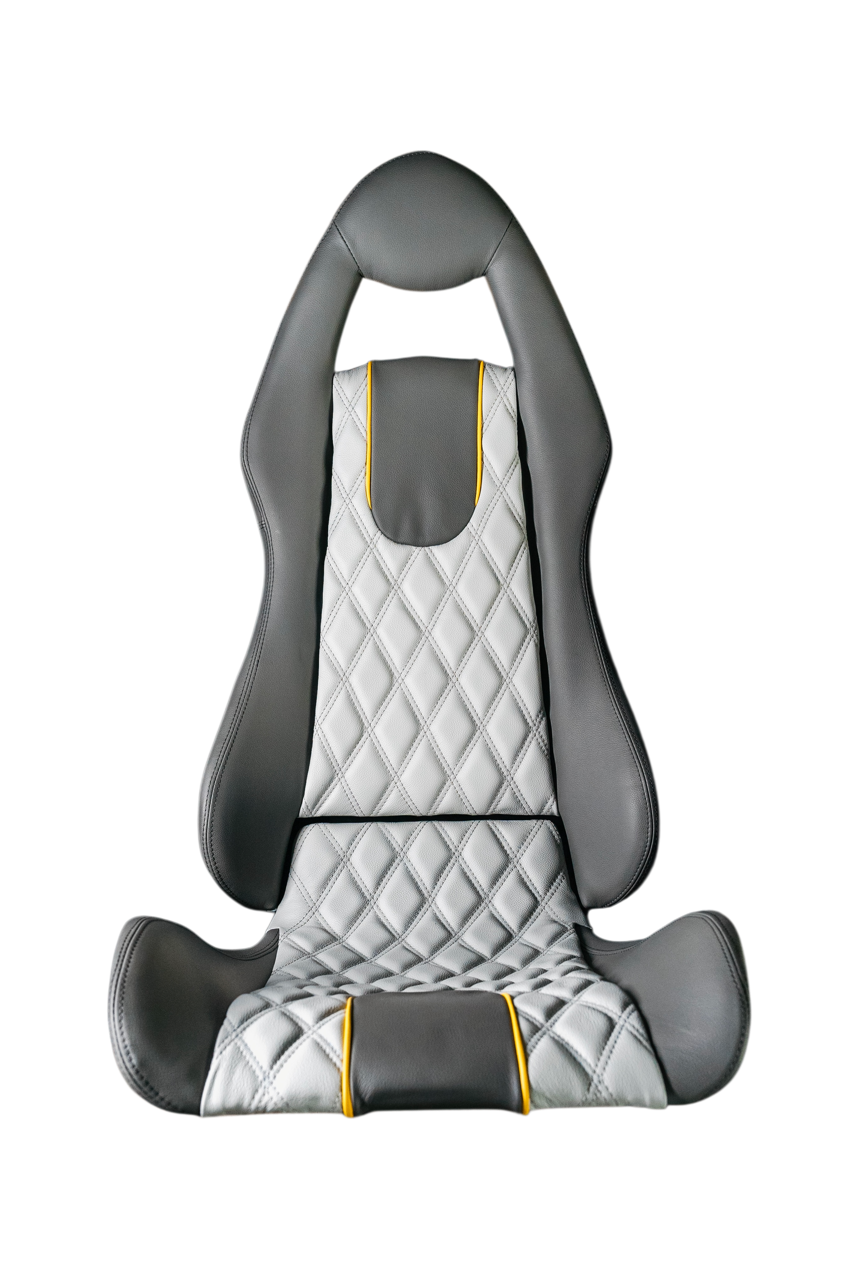

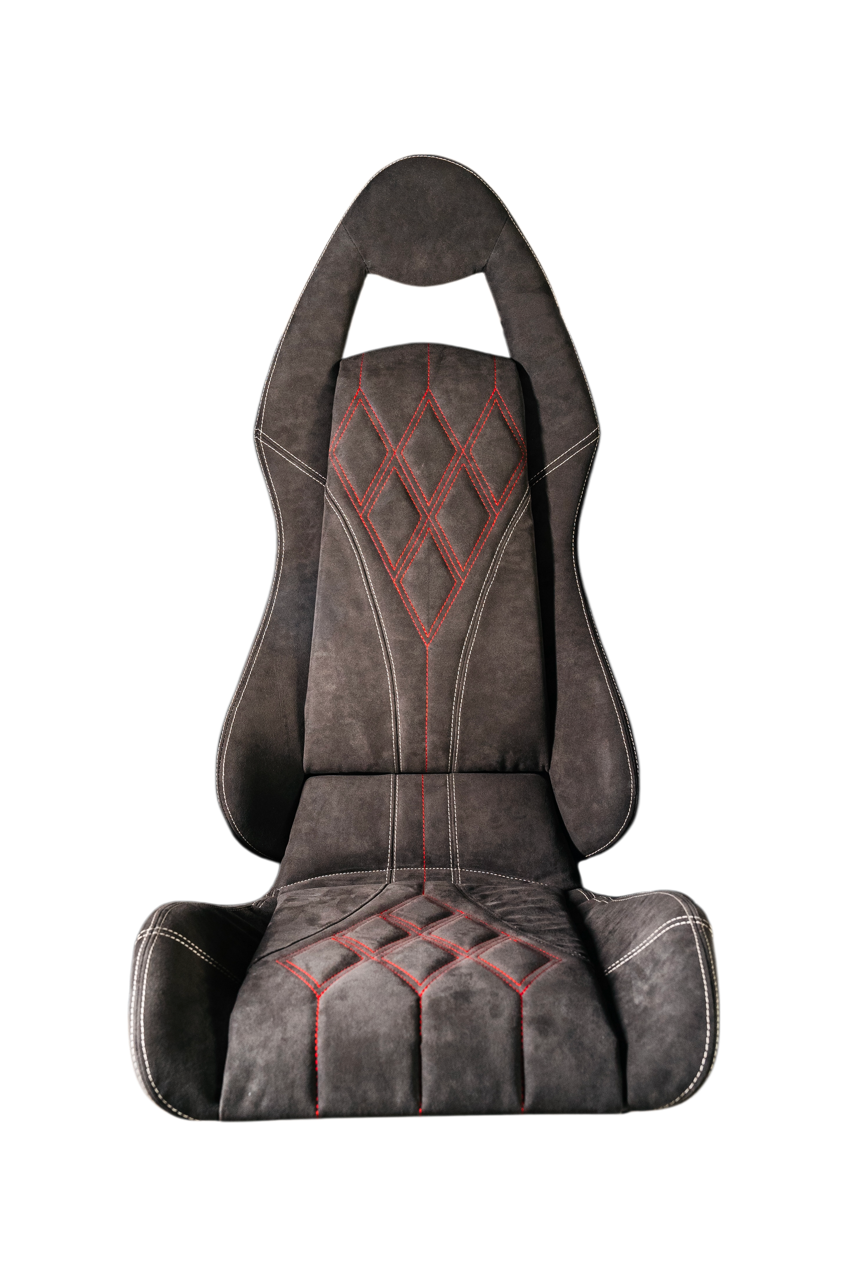

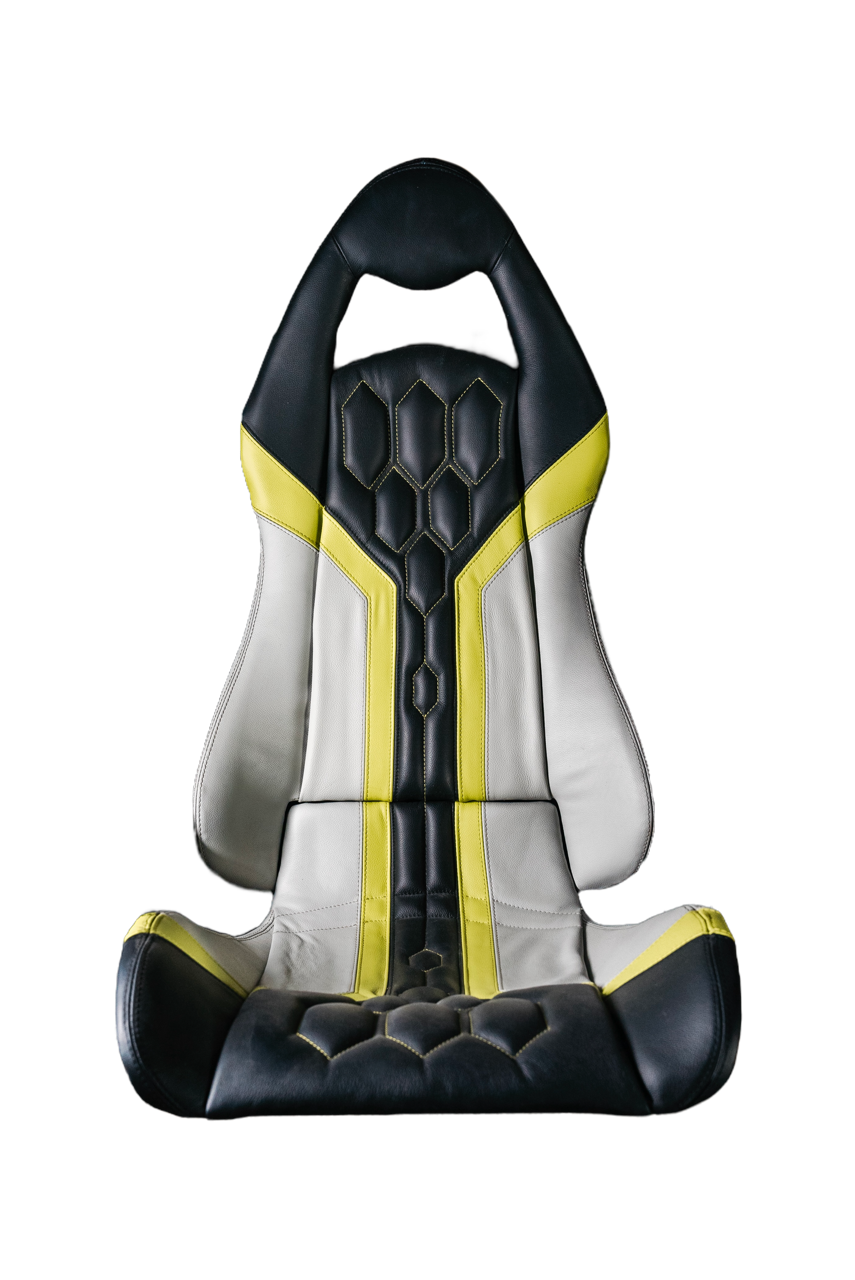

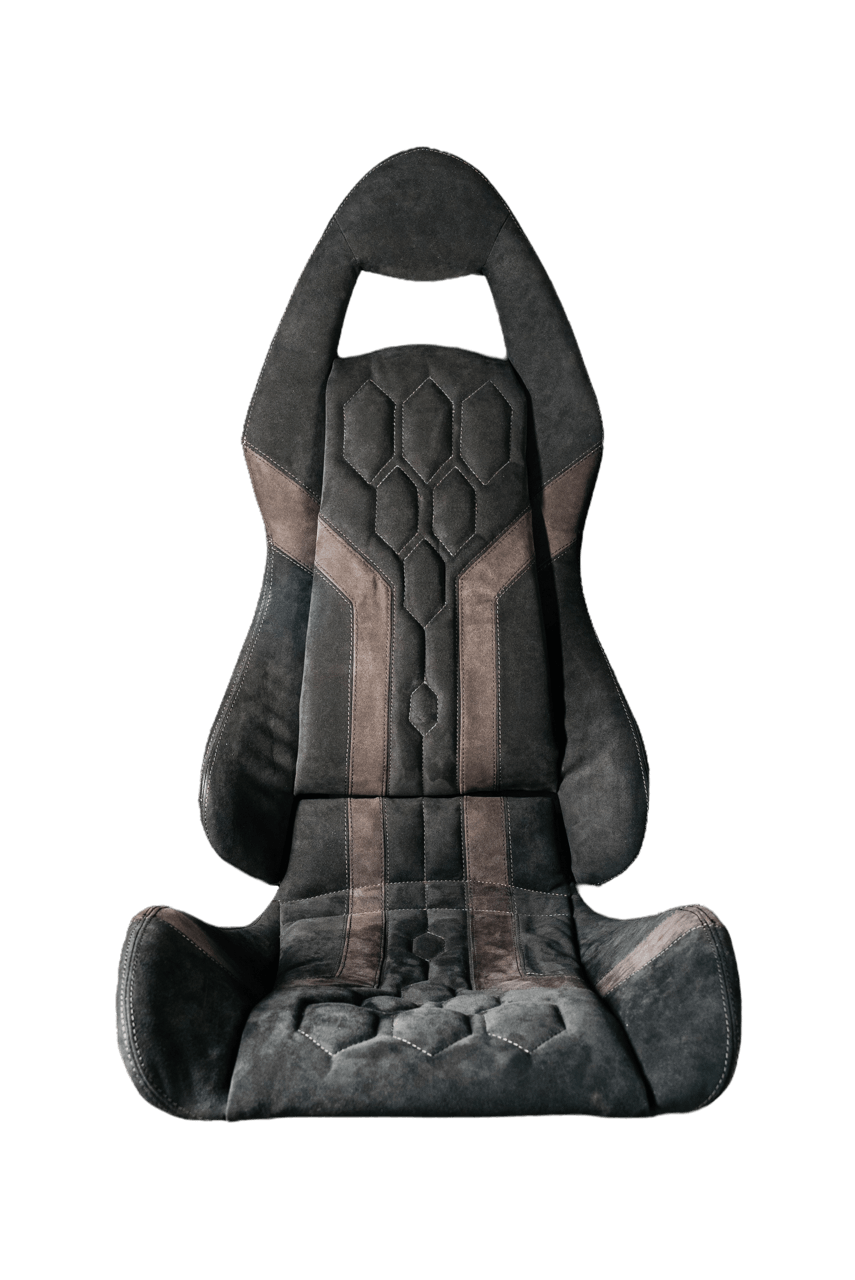

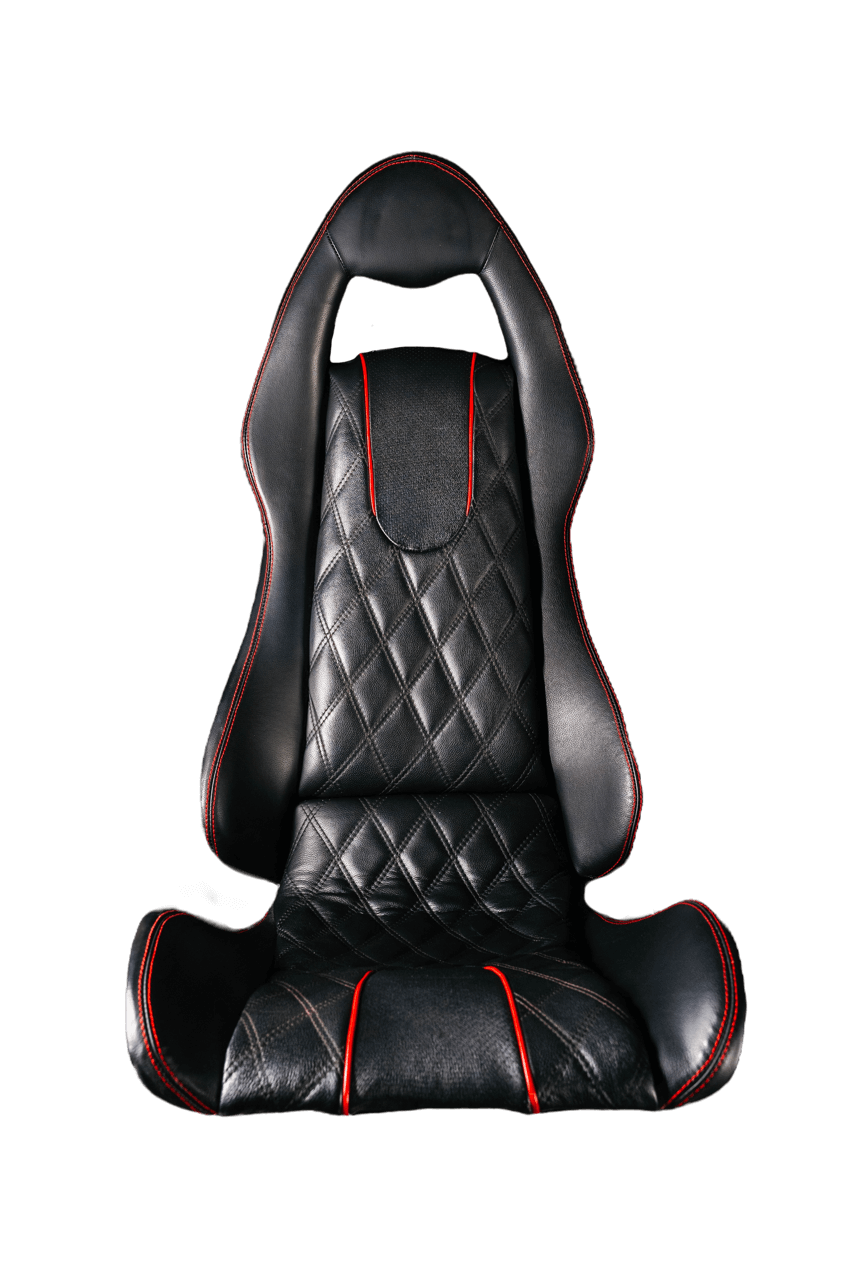

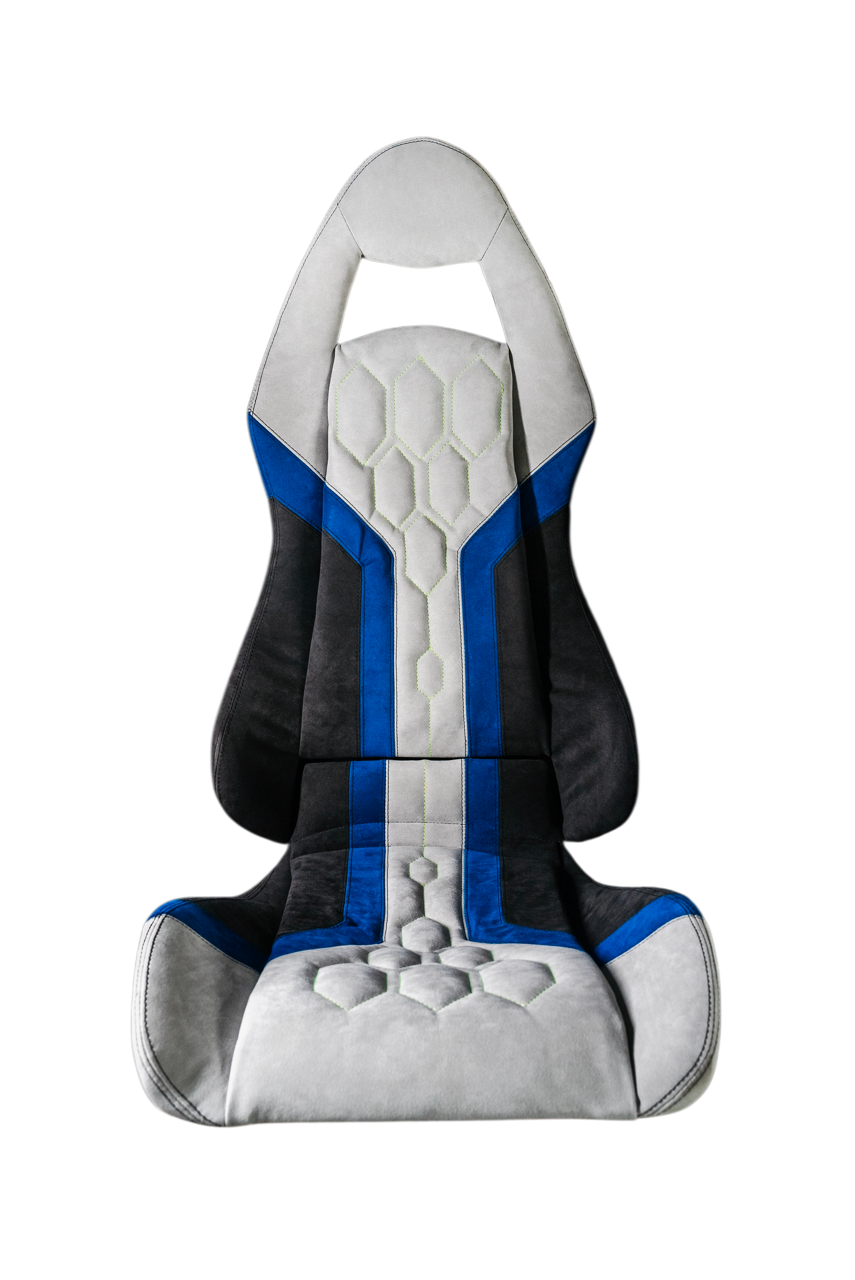

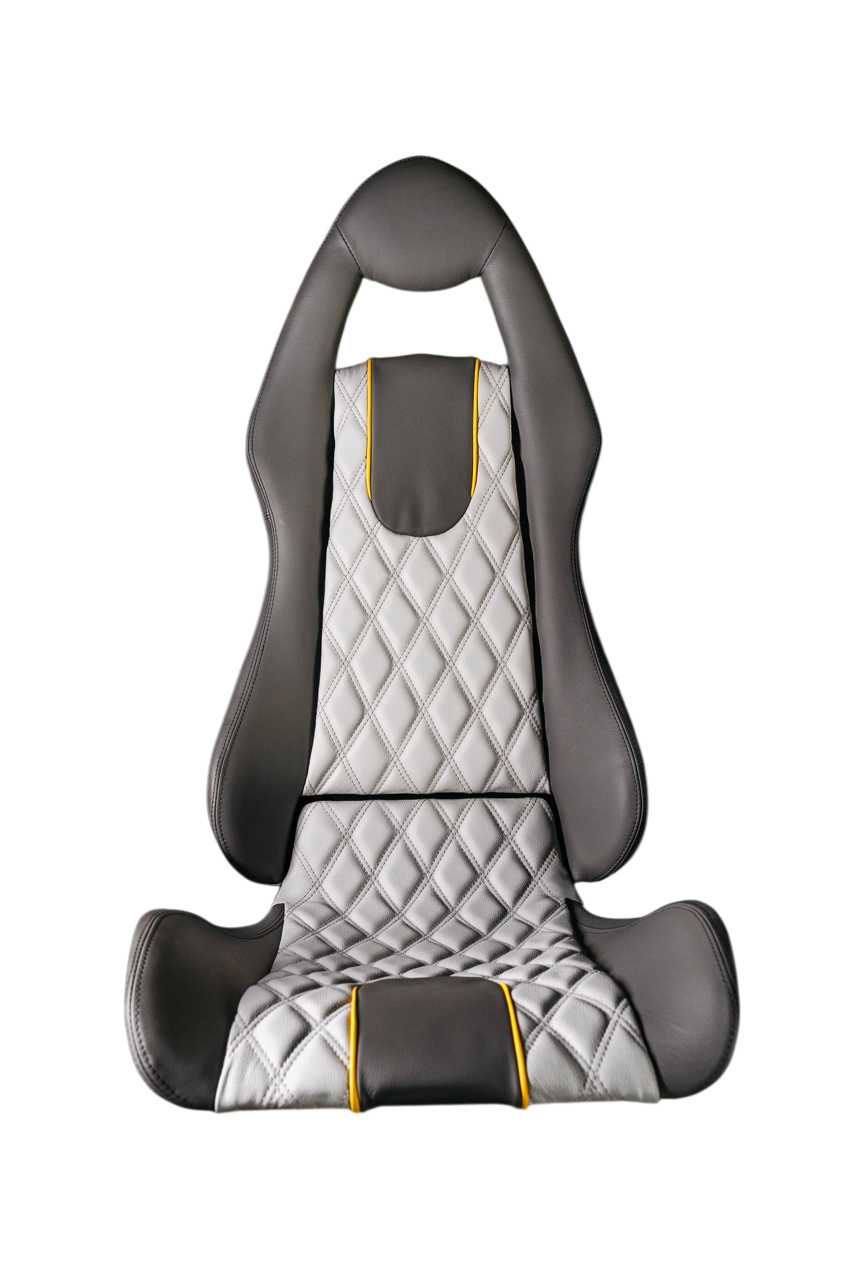

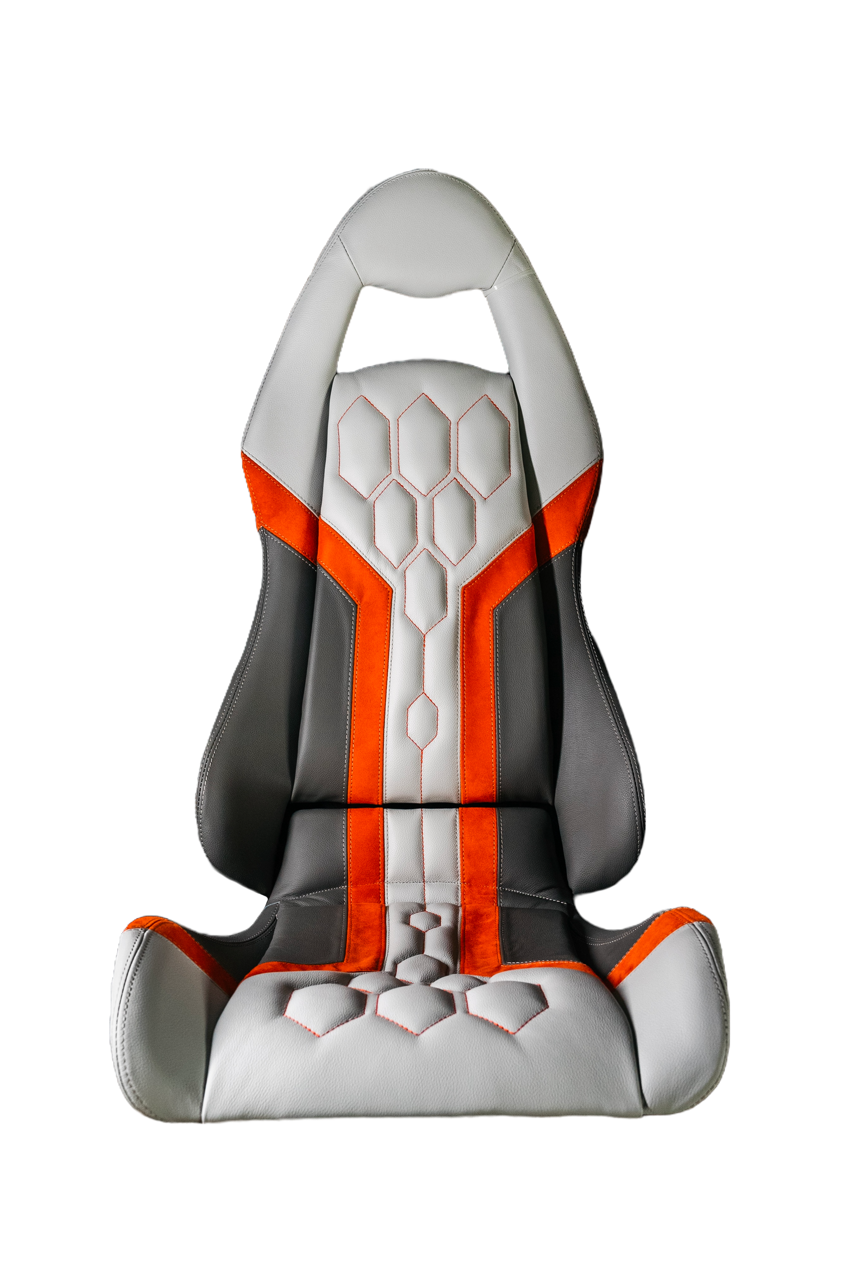

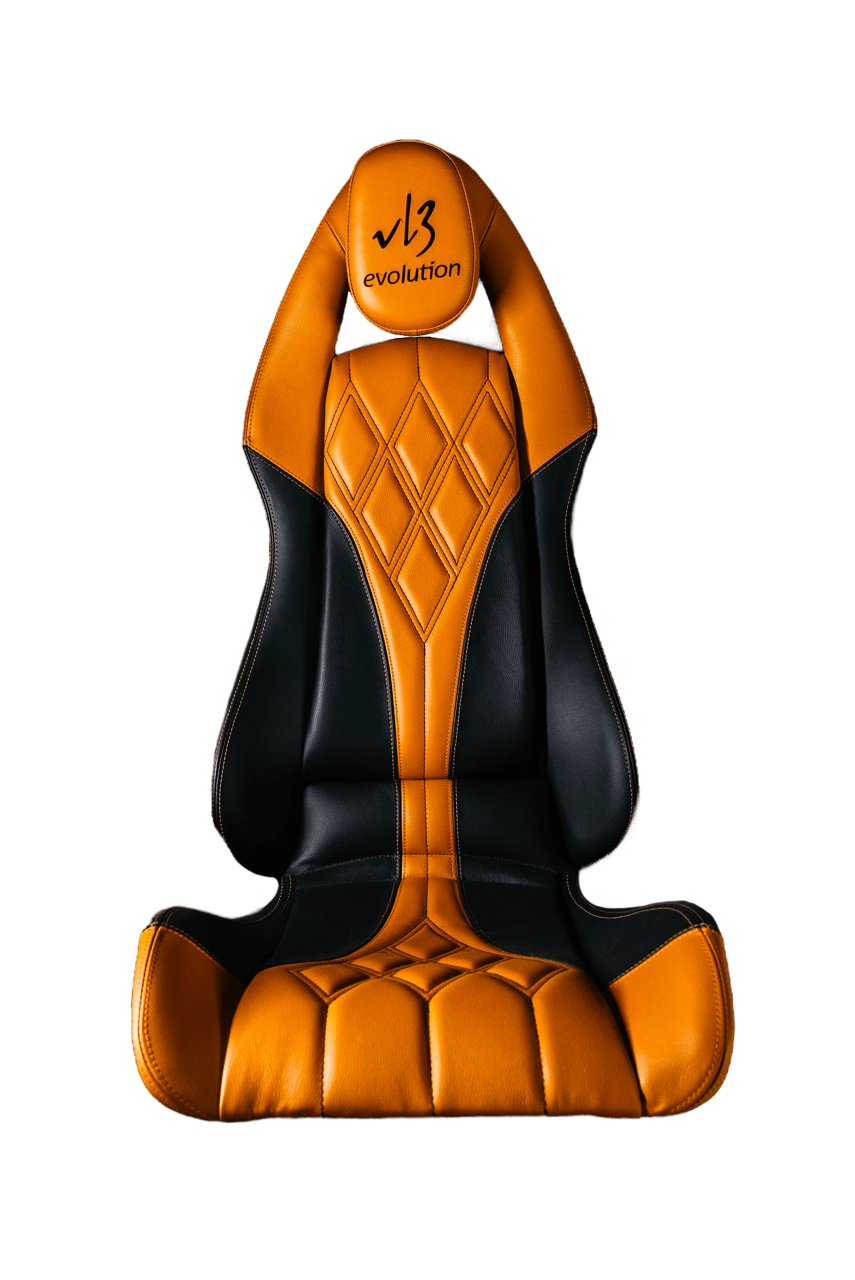

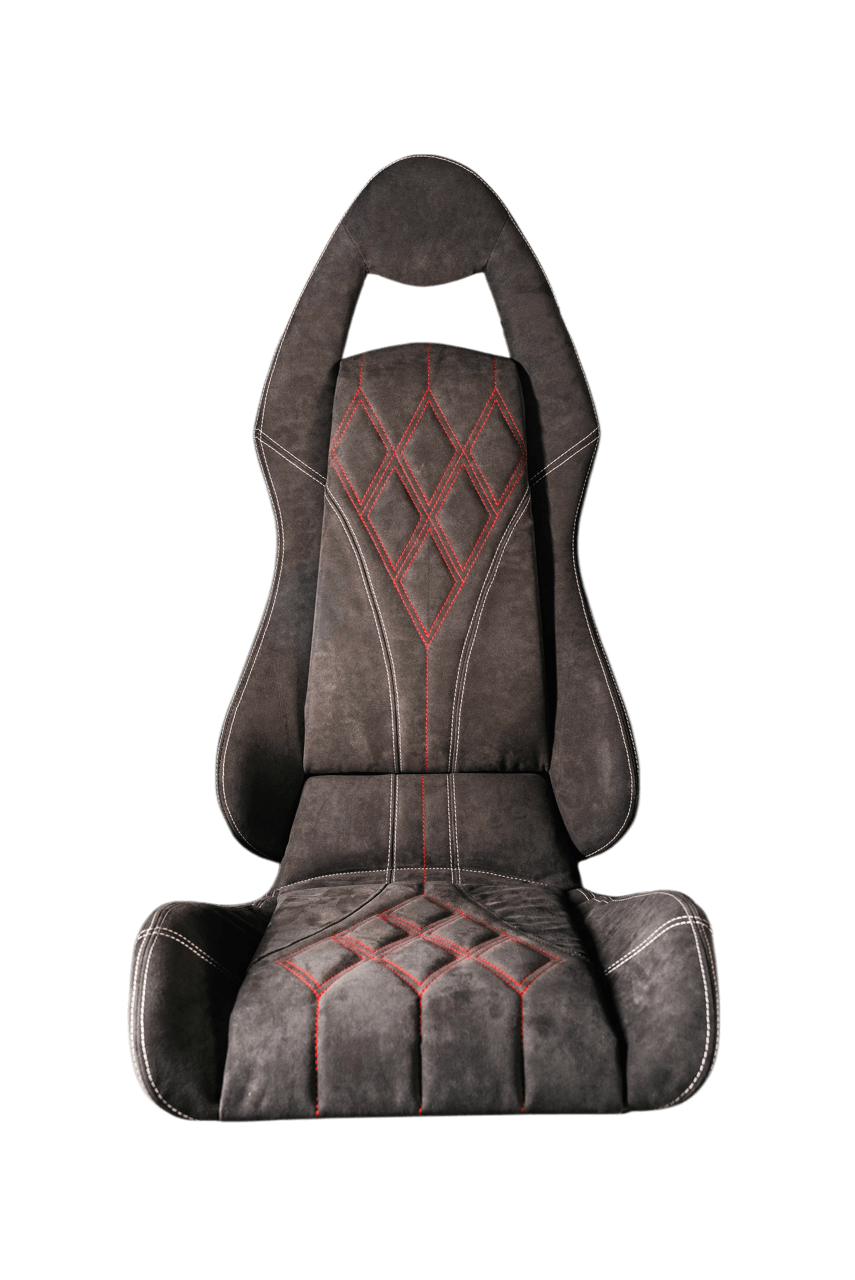

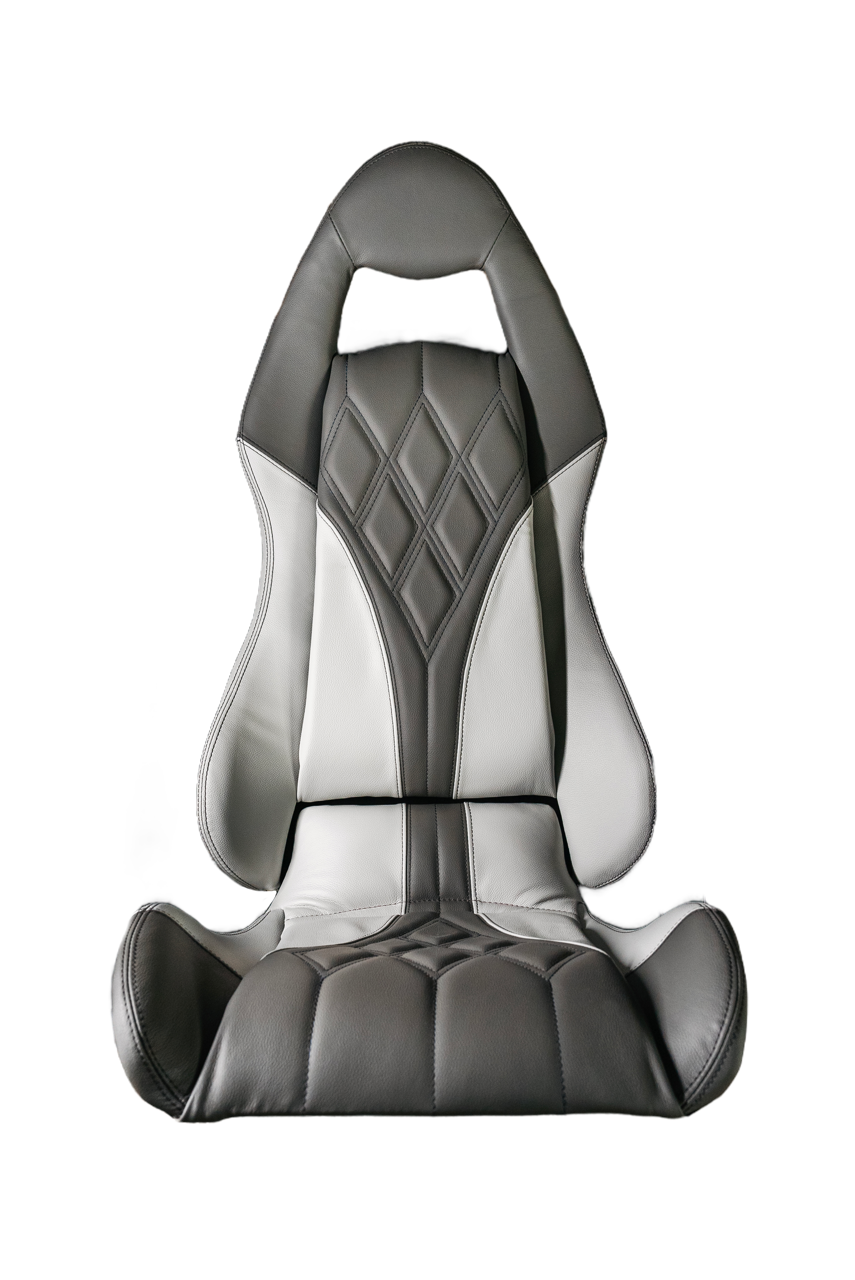

5Seats

Comfortable and modern – select your choice of textile or leather designs, including choice of color. The seats are equipped with four-point safety belts. You can also choose colour of stitches, safety belts, perforated leather or not, colour of embroidery.
6Baggage compartment

The baggage compartment is equipped with headphones holders. The luggage space allows to care four airliner cabin luggages.

Cargo door

Get easy access to the luggage compartment with the cargo doors. Travel in style.

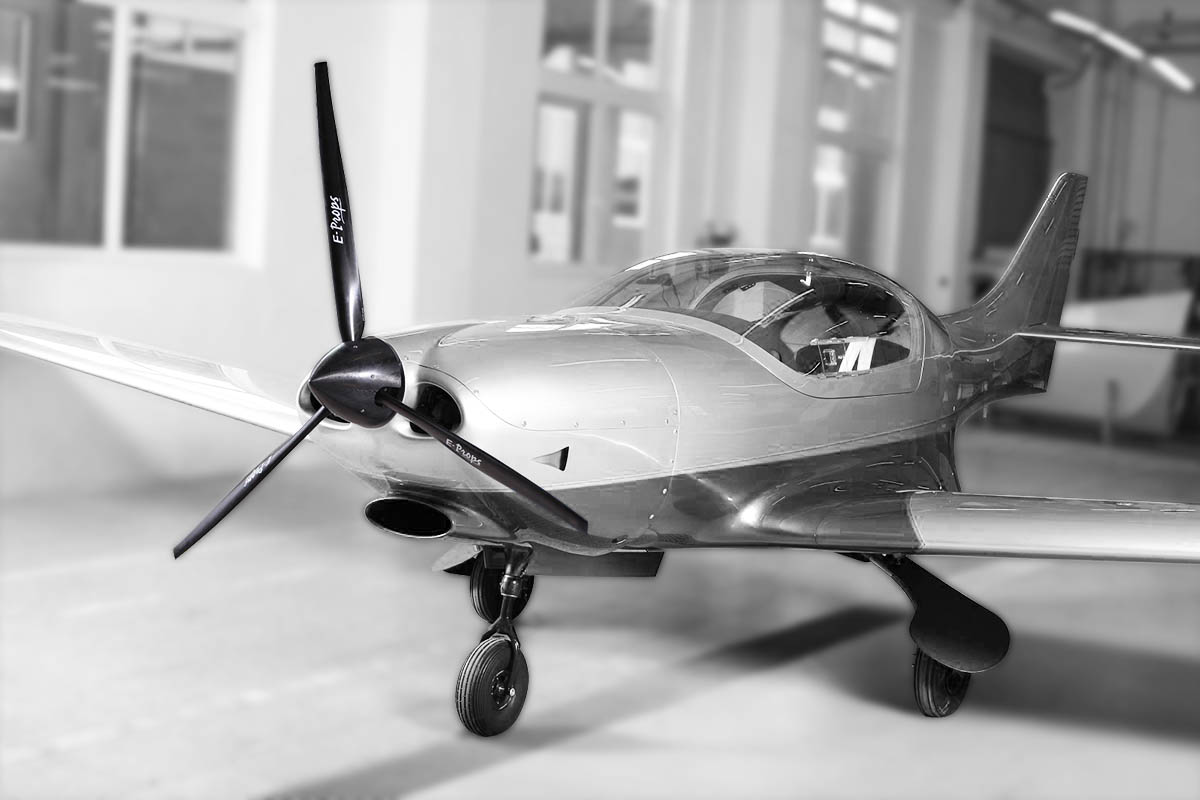

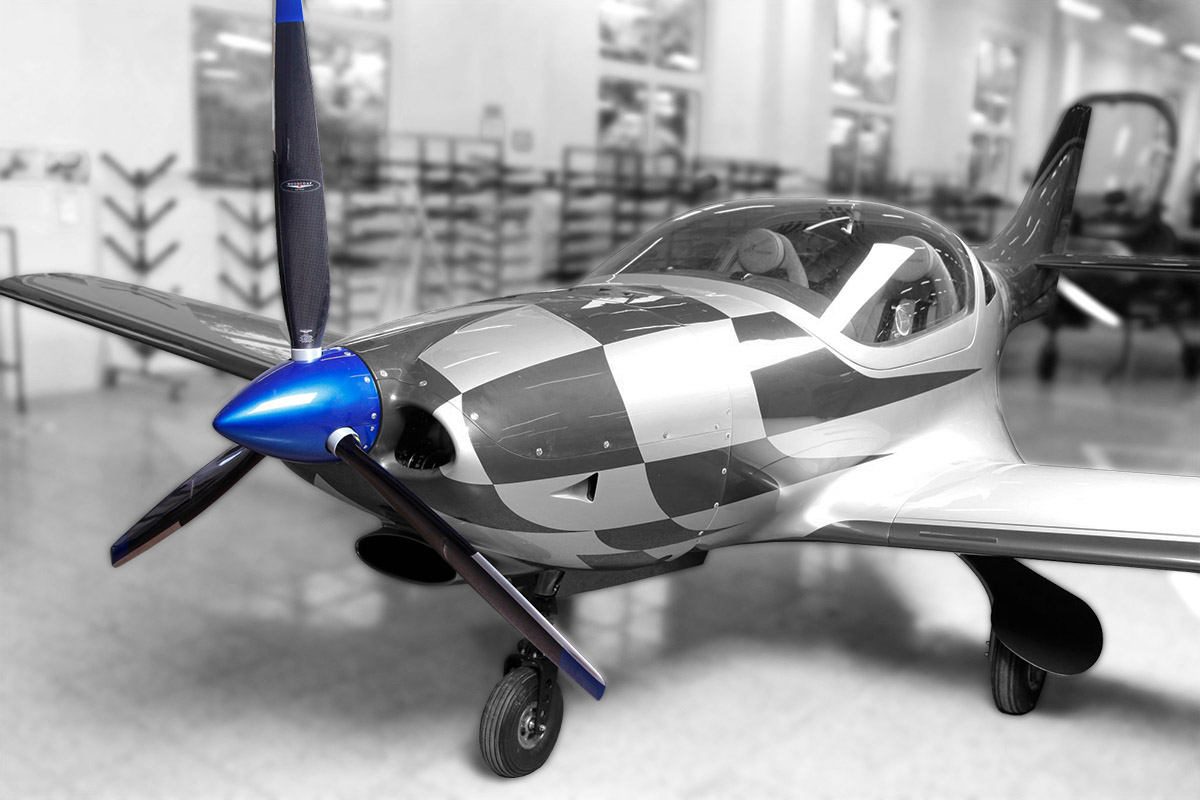

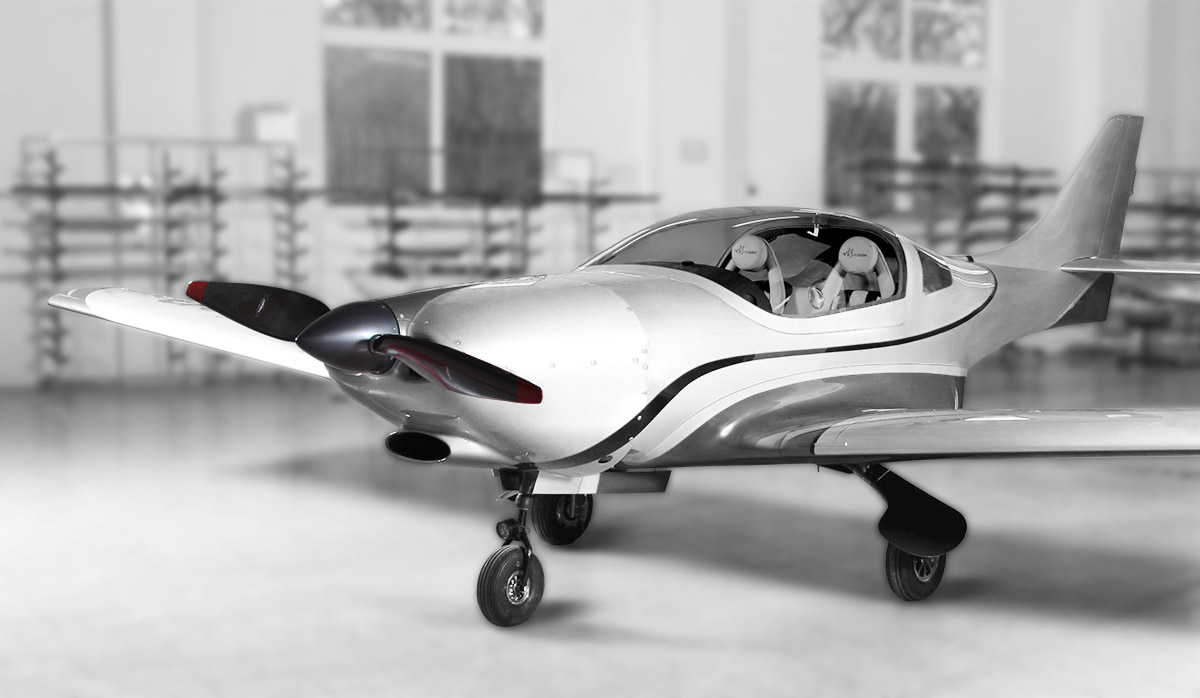

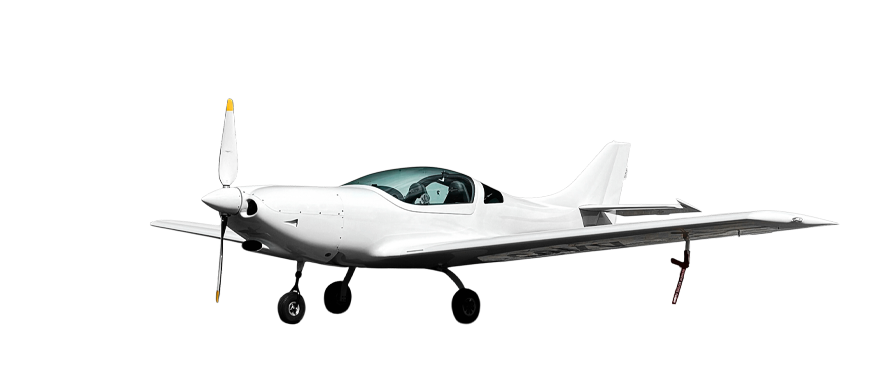

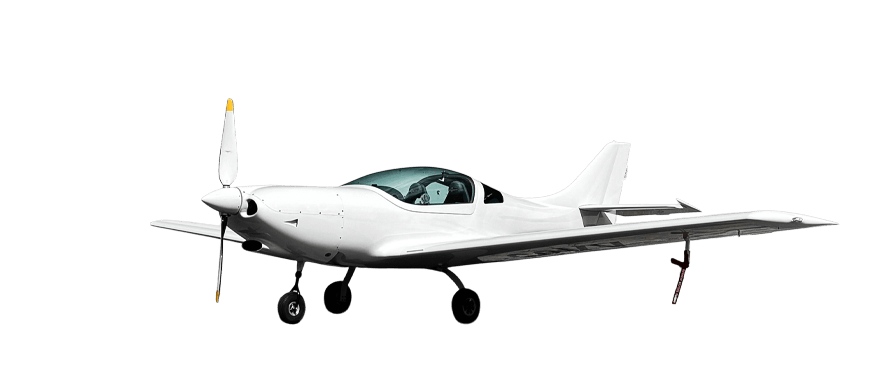

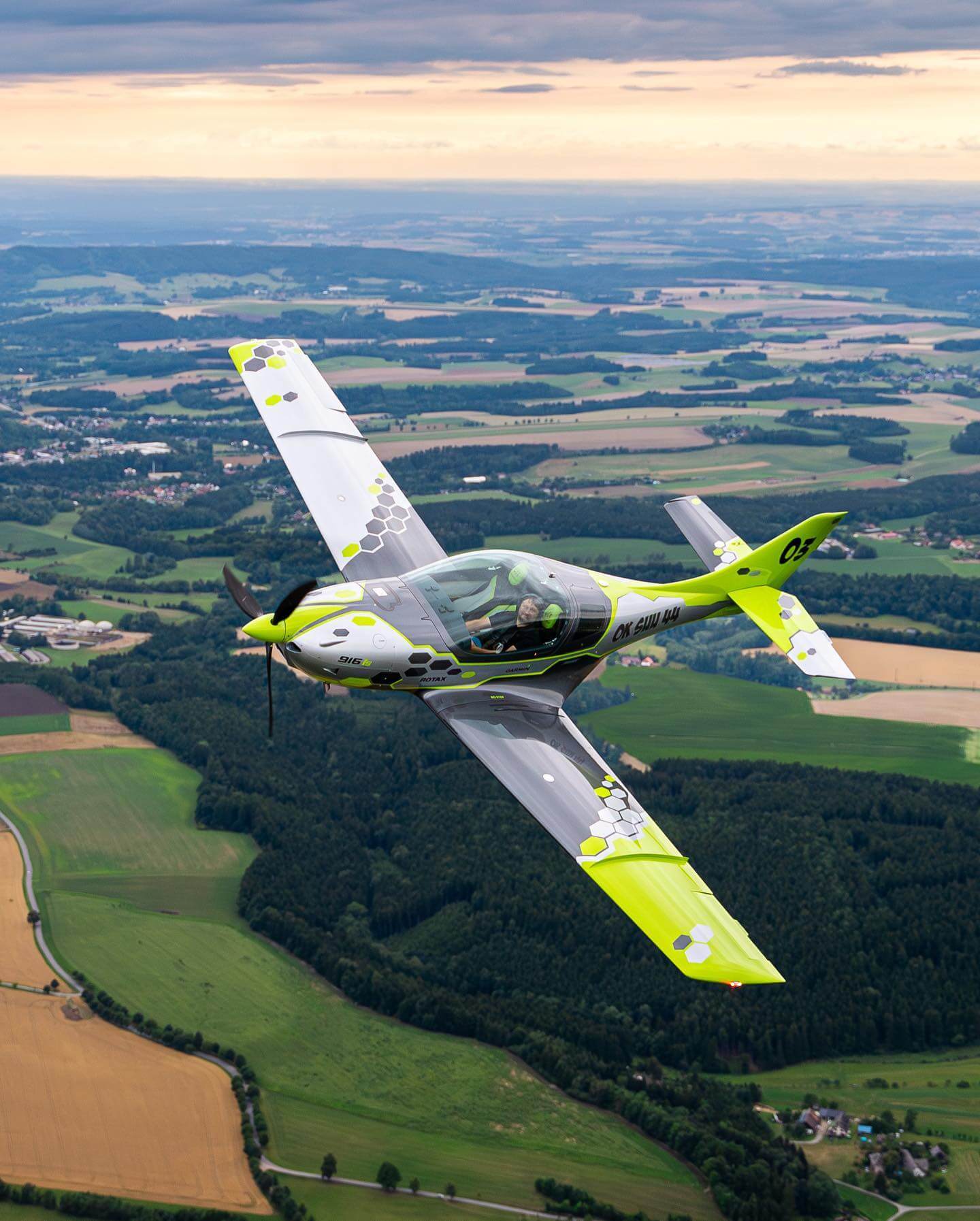

Fixed Gear, for flight schools

The fixed gear version of VL3 is designed for flight schools. Your students will learn faster since the VL3 is really easy to fly having an incredible low stall speed and short landing roll.

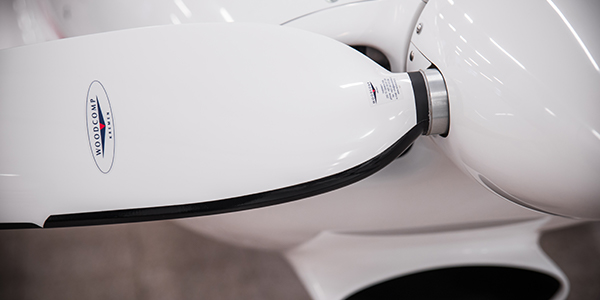

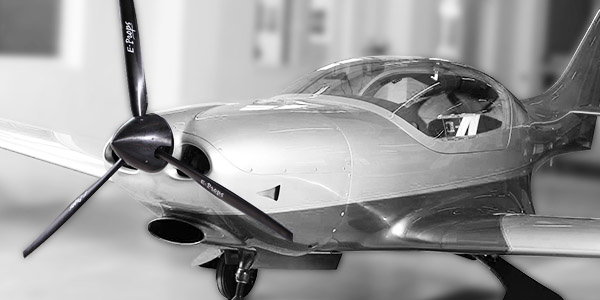

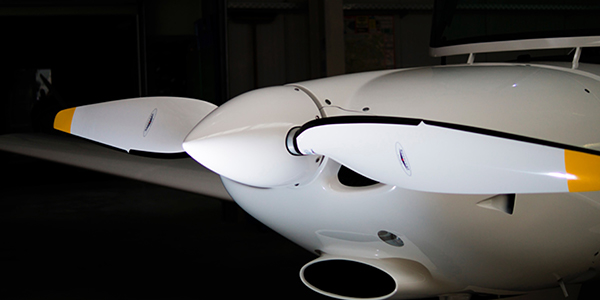

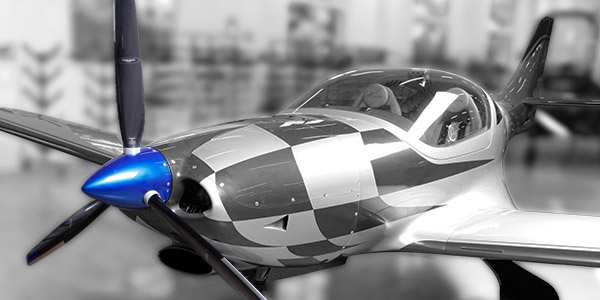

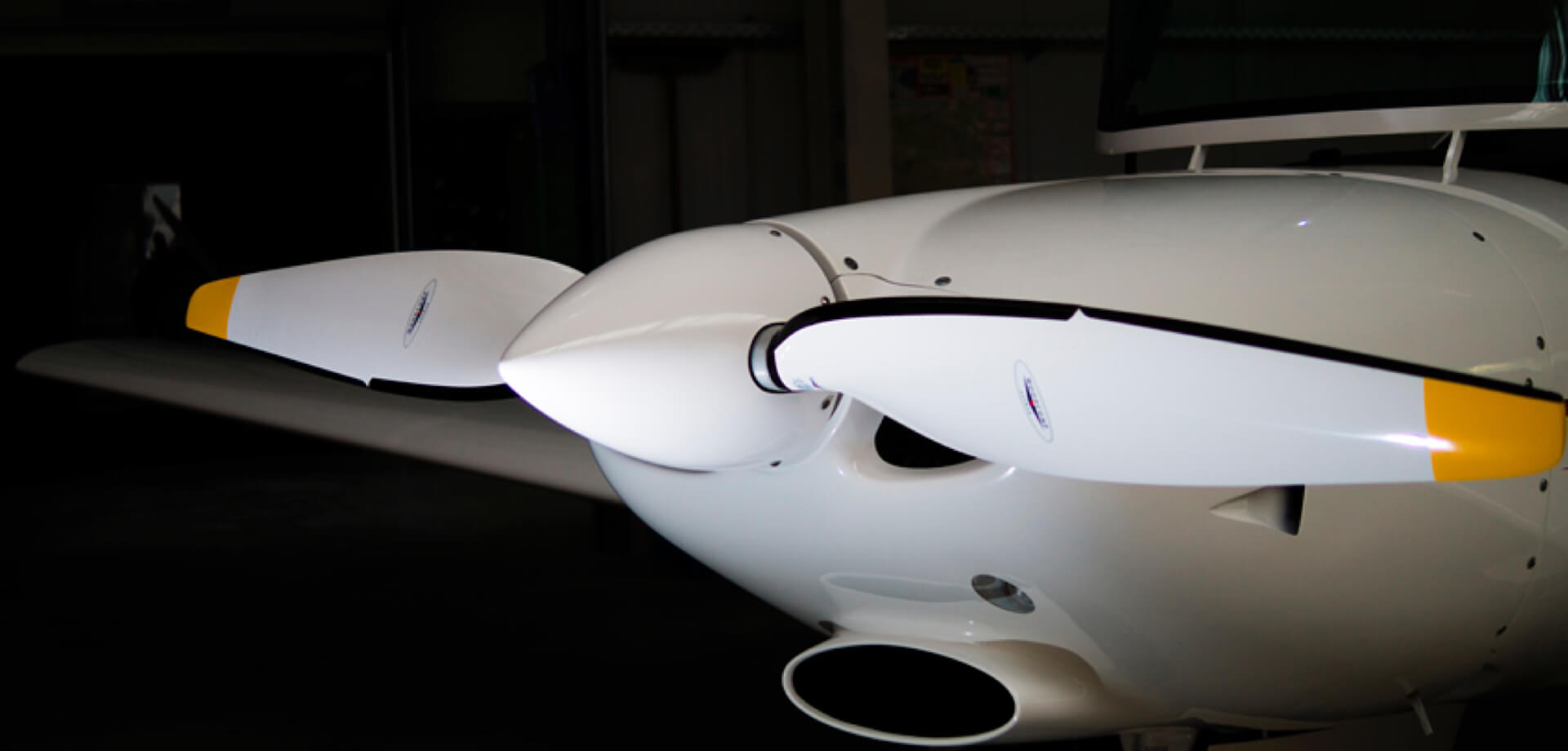

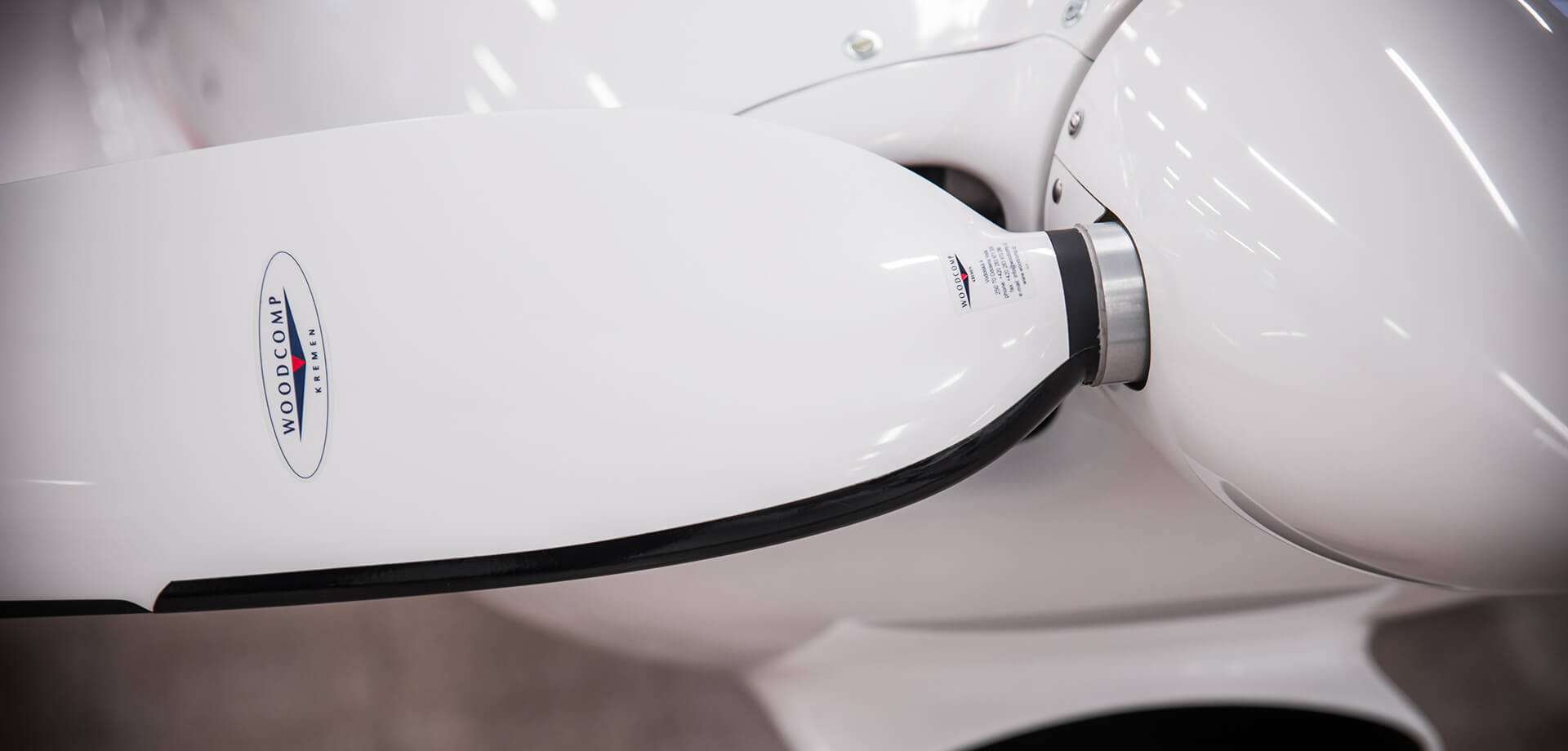

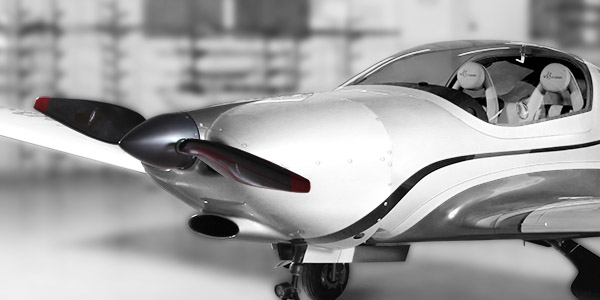

Propeller

You can choose between a fixed or variable pitch propeller. The propeller is adjustable in-flight to enhance your climb and cruise performance. Its adjustability will also shorten your take-off distance.

For best results install the Rotax 915, hydraulic governor and Woocomp KW31 hydraulic propeller.
